Buzzer, Buzzer, Continuous, 24V AC, 70 dB, Steel, Gray, Surface Mount
Mfr # 340A-G5
Zoro # G4673155
product price:Â
$
191.99
/ea
Free Shipping & Returns
Key Features
Housing Material
Steel
Mounting
Surface
Amps
0.250A
Diameter
5.0625 in
Color
Gray
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 340A-G5
- Zoro #
- G4673155
- UPC #
- 782640236802
- Country of Origin
- Mexico
Dimensions
- Diameter
- 5.0625 in
- Height
- 2.3438 in
- Width
- 5.1094 in
- Depth
- 2.25 in
- Overall Diameter
- 5 1/16 in
- Overall Depth
- 2 1/4 in
Description

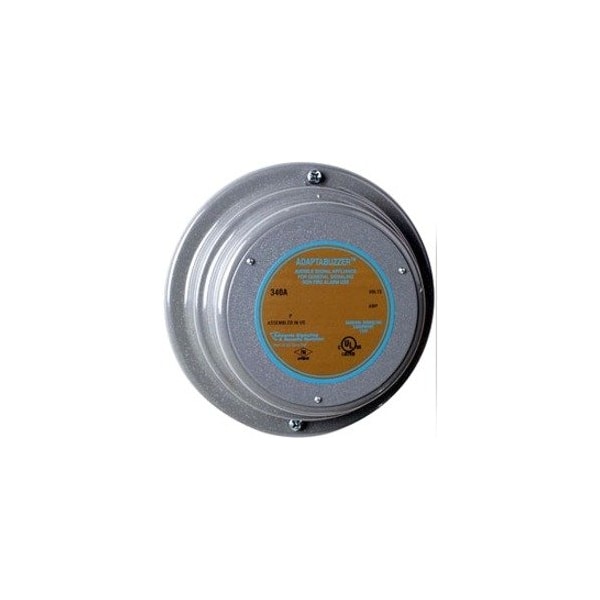

EDWARDS SIGNALING 340A-G5 is a surface-mount audible buzzer for fixed indoor audible signaling applications. Rated operating voltage: 24V AC. It produces a continuous buzzer signal using a vibrating armature sound principle. The unit features a steel housing with a corrosion-resistant heat flowed epoxy finish.
Key Features:
- Audible alarm type: Buzzer with continuous sound pattern
- Sound output: 70 dB at 10 ft maximum; 80 dB at 1 m maximum
- Rated operating voltage: 24V AC
- Operating current: 0.250 A
- Mounting: Surface mount
- Housing material: Steel
- Finish: Corrosion-resistant heat flowed epoxy finish
- Sound principle: Vibrating armature
- Visual indicator: None
- Location rating: Indoor
- Dimensions: 5-1/16 in. overall diameter x 2-1/4 in. overall depth
- Standards: FM, UL Listed
