Shop EDWARDS SIGNALING

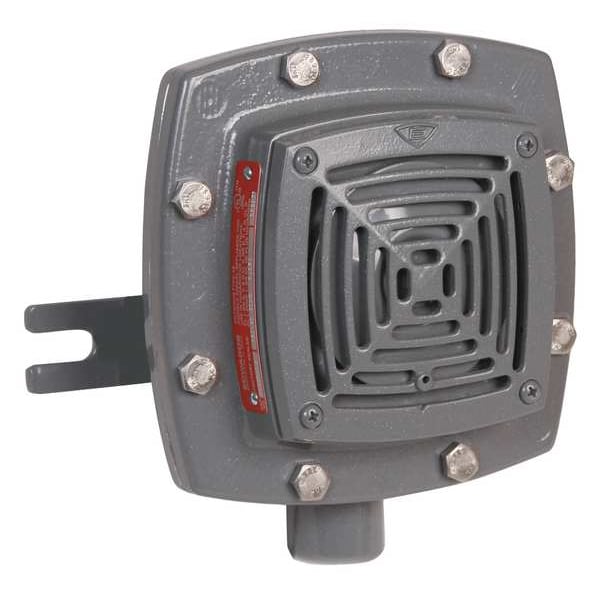

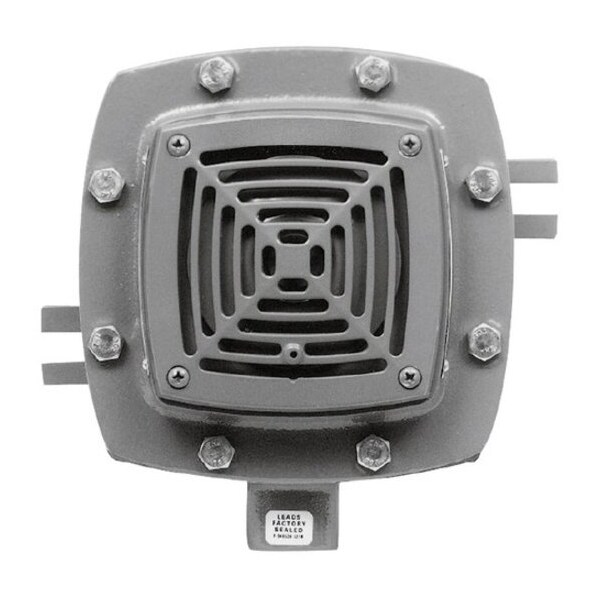

Horn, Horn, Continuous, 24V DC, 97 dB, Heavy Duty Die Cast, Gray, Wall/Pipe Mount

  • Mfr # 879EX-G1

  • Zoro # G5677235

product price:  $1,536.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Wall/Pipe
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
879EX-G1
Zoro #
G5677235
UPC #
782640258354
Country of Origin
Mexico

Dimensions

Depth
4.1875 in
Height
7.625 in
Width
7.375 in
Overall Depth
4 3/16 in
Overall Length
7 5/8 in
Overall Width
7 3/8 in

Details

Item
Horn
Housing Material
Heavy Duty Die Cast
Mounting
Wall/Pipe
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
Voltage
24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
97 dB
Sound Pattern
Continuous
Vibrating
Yes
Hazardous Division
1, 2
Operating Temp.
-13 Degrees to 104 Degrees F
Visual Indicator Type
No Visual Indicator
Hazardous Class
I, II, III
Power Source
Wire
Features
Corrosion Resistant Heat Flowed Epoxy Finish
Product Type
Horn
Rating
NEMA 4X
Material
Heavy Duty Die Cast
Operating Temperature - Minimum
-13 Degrees F
Sound Principle
Vibrating
Alarm Volume @ 10 ft - Maximum
97 dB
Sound Style
Horn
Number of Sound Patterns
1
Alarm Volume @ 1 m - Maximum
107 dB
Operating Temperature - Maximum
104 Degrees F
Vibration
Vibrating
IP Rating
NEMA 4X
NEMA Rating
NEMA 4X
Sound Continuity
Continuous
Operating Current
0.160 A
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2
For Location
Indoor, Outdoor
Operating Voltage
24V DC

Description

EDWARDS SIGNALING 879EX-G1 is a 24V DC audible signaling horn with a continuous horn output and no visual indicator. It produces 97 dB at 10 ft and up to 107 dB at 1 m, and is rated for indoor and outdoor locations. The unit features a die-cast housing with a heat-flowed epoxy finish and supports wall or pipe mounting.

Key Features:

  • Audible alarm type: Horn with continuous sound pattern
  • Sound output: 97 dB at 10 ft; maximum 107 dB at 1 m
  • Operating voltage: 24V DC
  • Operating current: 0.160 A
  • Housing/material: Die cast
  • Finish: Heat-flowed epoxy finish
  • Mounting: Wall/Pipe
  • Location rating: Indoor, Outdoor
  • Hazardous location rating: Class I, Division 1; Class I, Division 2; Class II, Division 1; Class II, Division 2
  • Hazardous class/division: I, II, III; 1, 2
  • Enclosure rating: NEMA 4X
  • Standards: UL Listed
  • Operating temperature: -13 degrees F to 104 degrees F
  • Overall dimensions: 7 5/8 in L x 7 3/8 in W x 4 3/16 in D
