Shop EDWARDS SIGNALING

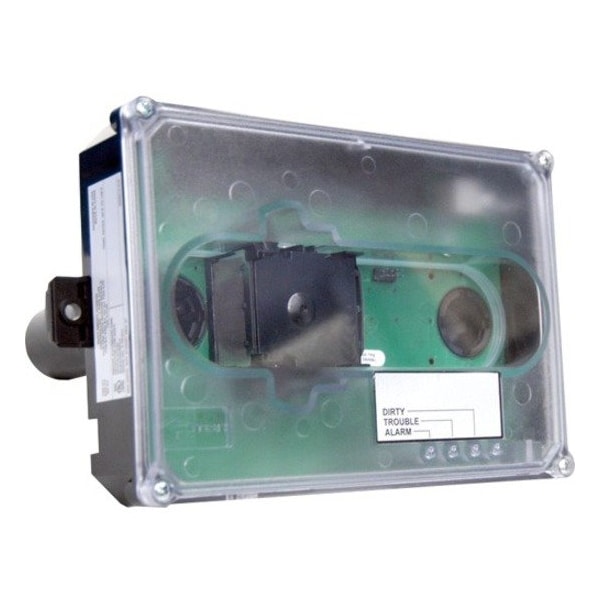

Duct Detector, 2-Wire

  • Mfr # SD-2W

  • Zoro # G7619096

product price:
$
204.99
/ea
Free Shipping & Returns

Key Features

Power Source
Hardwired
Overall Width
8.7 in
Overall Height
5.45 in
Maximum Operating Temperature
158 Degrees F
Standards
CSFM, FM, UL, ULC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SD-2W
Zoro #
G7619096
UPC #
793016035806
Country of Origin
China
Item
Duct Detector
Power Source
Hardwired
Maximum Operating Temperature
158 Degrees F
Standards
CSFM, FM, UL, ULC
Air Velocity (FPM)
100 to 4000 fpm
Alarm Aux. Contact @ 30VDC
2 A
Type
2 Wire
Alarm Current
100mA
Voltage
24V DC
Ambient Temp. Limits (F)
-4 Degrees to 158 Degrees F
Standby Current (uA)
70 uA
Humidity Range
93% RH
Color
Black, Clear
Minimum Operating Temperature
-4 Degrees F
Detects
Smoke
Humidity Operating Range
93% RH
Mount Type
Surface
Alert Type
Light
Detector Type
Smoke Detector
Voltage Rating
16 to 30V DC
Environment
Indoor
DC Contact Rating
2 A @ 30V
Shape
Rectangular
Sensor Type
Photoelectric
Current Rating
5 to 100 mA
Visual Alert Type
Red LED, Yellow LED
Relative Humidity - Maximum
93 %
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Duct Detector, 2 Wire, Surface Mounting, Alarm Current 100mA, Standby Current (uA) 70, Depth (In.) 1-7/8, Height (In.) 5.45, Length (In.) 7-3/4, Ambient Temp. Limits (F) -4 to 158, Air Velocity (FPM) 100 to 4000, Alarm Aux. Contact @ 30VDC 2A, Humidity Range ( Percent RH) 93, Voltage 24VDC, Standards UL, ULC, CSFM
