Shop EDWARDS SIGNALING

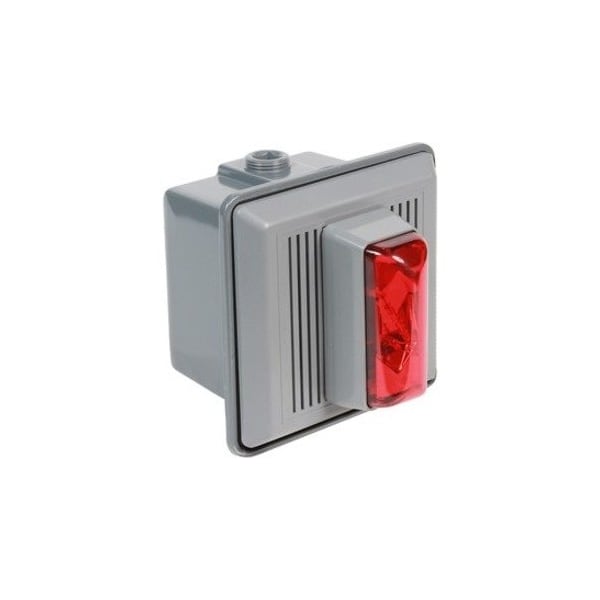

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Gray Housing, Red Lens, Surface Mount

  • Mfr # 868STRR-N5

  • Zoro # G4858646

product price:
$
445.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Gray Housing, Red Lens
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
868STRR-N5
Zoro #
G4858646
UPC #
782640239407
Country of Origin
Mexico

Dimensions

Height
5.5 in
Depth
0.625 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Gray Housing, Red Lens
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Outdoor
Decibels
90 dB
Sound Pattern
Continuous
Operating Temp.
-31 Degrees to 150 Degrees F Outdoor, 32 Degrees to 120 Degrees F Indoor
Housing Color
Gray
Features
3/4 in Conduit Top
Lens Color
Red
Vibrating
No
Flashes per Minute
60
Light Output
21 CP
Current Drawn
148 mA
Visual Indicator Type
Strobe
Power Source
Wire
Product Type
Horn and Strobe
Connection Type
Wire Leads
Control Protocol
Direct Wire
Brightness Selection
Fixed Brightness
Operating Current
0.148 A
Operating Temperature - Minimum
-31 Degrees F
Operating Temperature - Maximum
150 Degrees F
For Location
Outdoor
Light Intensity
21 CP
Sound Style
Horn
Light Source
Xenon
Mounting Style
Surface Mount
Light Operating Mode
Strobe
Vibration
No Vibration
Alarm Volume @ 1 m - Maximum
100 dB
Alarm Volume @ 10 ft - Maximum
90 dB
Sound Continuity
Continuous
Number of Sound Patterns
1
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 868STRR-N5 is a surface-mount horn strobe that combines an audible horn and red strobe light in one direct-wire unit. It operates on 120V AC and is rated for outdoor use for audible and visual signaling applications in a single direct-wire device.

Key Features:

  • Audible horn and strobe light combination
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Sound pattern: continuous horn with 1 sound pattern
  • Light output: 21 CP xenon strobe flashing at 60 flashes per minute
  • Electrical rating: 120V AC operation with 148 mA current draw
  • Construction: thermoplastic housing with gray housing and red lens
  • Mounting and connection: surface mount with wire leads and 3/4 in conduit top entry
  • Operating temperature: -31 to 150 degrees F outdoors; 32 to 120 degrees F indoors
  • Dimensions: 5.5 in H x 5.5 in W x 0.625 in D
  • UL Listed
