  6. Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Blue Lens, Gray Housing

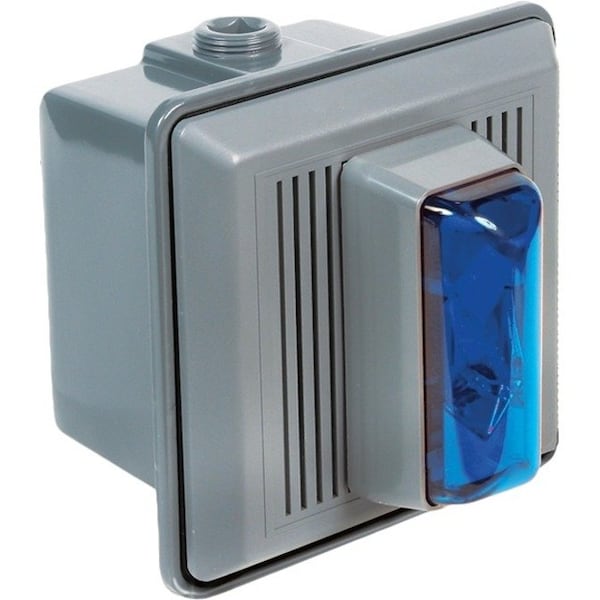

Edwards Signaling Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Blue Lens, Gray Housing 868STRB-AQ - main
Shop EDWARDS SIGNALING

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Blue Lens, Gray Housing

  • Mfr # 868STRB-AQ

  • Zoro # G6185277

product price:  $401.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Blue Lens, Gray Housing
Audible Alarm Type
Horn
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
868STRB-AQ
Zoro #
G6185277
UPC #
782640239445
Country of Origin
Mexico

Dimensions

Height
5.5 in
Depth
0.625 in
Width
5.5 in
Overall Depth
5/8 in
Overall Width
5 1/2 in
Overall Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Blue Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
24 V AC, 24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
90 dB
Sound Pattern
Continuous
Flashes per Minute
60
Lens Color
Blue
Housing Color
Gray
Operating Temp.
32 Degrees to 120 Degrees F
Current Drawn
462 mA @ 24V AC, 412 mA @ 24V DC
Light Output
20 CP
Visual Indicator Type
Strobe
Vibrating
No
Power Source
Wire
Product Type
Horn and Strobe
Alarm Volume @ 1 m - Maximum
100 dB
Sound Style
Horn
Control Protocol
Direct Wire
Number of Sound Patterns
1
Operating Temperature - Minimum
-31 Degrees F
Operating Temperature - Maximum
150 Degrees F
Vibration
No Vibration
For Location
Indoor, Outdoor
Brightness Selection
Fixed Brightness
Light Intensity
20 CP
Operating Current
0.462 A @ 24V AC, 0.412 A @ 24V DC
Sound Continuity
Continuous
Light Source
Xenon
Alarm Volume @ 10 ft - Maximum
90 dB
Mounting Style
Surface Mount
Light Operating Mode
Strobe
Connection Type
Wire Leads
Operating Voltage
24 V AC, 24V DC

Description

Horn Strobe, Lens Color Blue, Voltage 24VAC/DC, Current Drawn 462 mA @ 24V AC, 412 mA @ 24V DC, Sound Level 90dB @ 10 ft., Height 5-1/2 In., Width 5-1/2 In., Depth 5/8 In., Housing Color Gray, Housing Material Engineered Thermoplastic, Light Output 20 CP, Flashes per Minute 60, Mounting Outdoor Surface, Operating Temp. 32 to 120 Degrees F, Standards UL
