Shop EDWARDS SIGNALING

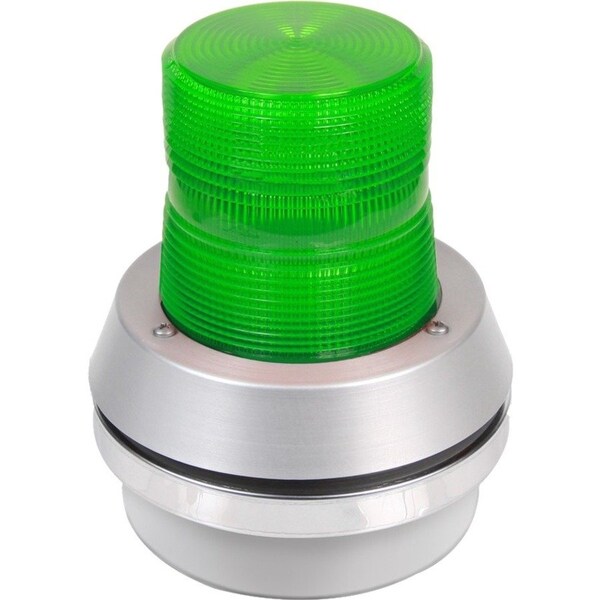

Horn Strobe, Horn, Pulse, 120VAC, 85 dB, Cast Aluminum, Green Lens, Gray Housing, Surface Mount

  • Mfr # 51XBRFG120A

  • Zoro # G6622016

product price:
$
420.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Aluminum
Mounting
Surface
Diameter
6 in
Audible Alarm Type
Horn
Standards
cUL, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
51XBRFG120A
Zoro #
G6622016
UPC #
782640521533
Country of Origin
United States

Dimensions

Diameter
6 in
Height
7.375 in
Width
6"
Overall Depth
7 3/8 in
Overall Diameter
6 in

Details

Item
Horn Strobe
Housing Material
Cast Aluminum
Mounting
Surface
Color
Green Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
120VAC
Standards
cUL, UL
Indoor/Outdoor
Indoor
Decibels
85 dB
Sound Pattern
Pulse
Lens Color
Green
Vibrating
Yes
Lamp Life
148,000 hr
Lamp Type
LED
Visual Indicator Type
Beacon
Operating Temp.
-31 Degrees to 160 Degrees F
Current Drawn
0.175 A
Flashes per Minute
65
Lens Design
Fresnel
Lens Material
Polycarbonate
Power Source
Wire
Features
Junction Box Base
Housing Color
Silver
Product Type
Horn and Light
Lifespan
148,000 hr
Sound Continuity
Pulse
Vibration
No Vibration
Number of Sound Patterns
1
Includes Mounting Hardware
Mounting Hardware Included
Control Protocol
Direct Wire
Sound Style
Horn
For Location
Indoor, Outdoor
Operating Temperature - Minimum
-31 Degrees F
Connection Type
Conduit Hole
Alarm Volume @ 1 m - Maximum
95 dB
Light Source
LED
Operating Temperature - Maximum
150 Degrees F
Alarm Volume @ 10 ft - Maximum
85 dB
Mounting Style
Surface Mount
Operating Current
0.175 A
Light Operating Mode
Flashing
Operating Voltage
120VAC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 51XBRFG120A is a surface-mount horn strobe for audible and visual signaling in indoor and outdoor locations. It combines a pulsed horn with a flashing green LED beacon/strobe, operates on 120VAC, and uses a direct-wire connection through a conduit hole. The cast aluminum housing and polycarbonate Fresnel lens are components of a mounted signaling device.

Key Features:

  • Audible and visual signaling with pulsed horn output and flashing LED light
  • Sound output: 85 dB at 10 ft maximum; 95 dB at 1 m maximum
  • Visual signal: flashing green LED light at 65 flashes per minute
  • Surface-mount design with junction box base; mounting hardware included
  • Cast aluminum housing with polycarbonate Fresnel lens
  • Green lens with gray/silver housing
  • Electrical: 120VAC operating voltage, 0.175 A operating current, direct-wire power source
  • Connection: conduit hole
  • Temperature range: -31 degrees F to 160 degrees F
  • Rated lamp life: 148,000 hr
  • Dimensions: 6 in diameter, 7 3/8 in overall depth, 7.375 in height, 6 in width
  • Standards: cUL, UL
