Shop EDWARDS SIGNALING

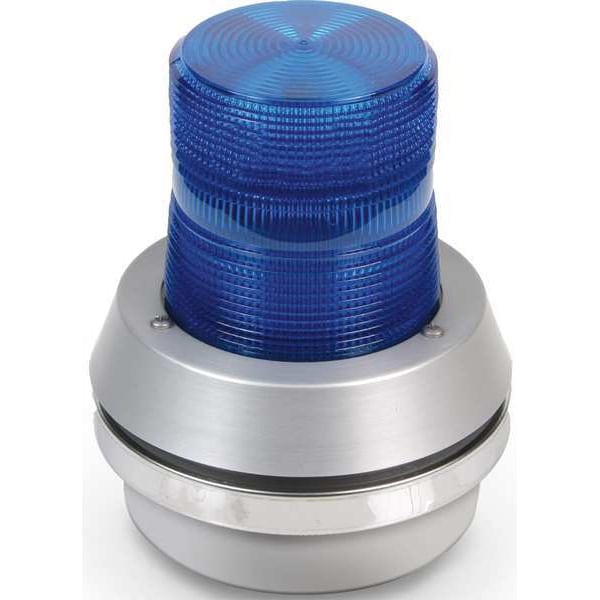

Horn Strobe, Horn, Pulse, 24V DC, 85 dB, Cast Aluminum, Blue Lens, Gray Housing, Surface Mount

  • Mfr # 51XBRFB24D

  • Zoro # G7216316

product price:  $412.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Aluminum
Mounting
Surface
Diameter
6 in
Audible Alarm Type
Horn
Standards
cUL, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
51XBRFB24D
Zoro #
G7216316
UPC #
782640521564
Country of Origin
United States

Dimensions

Diameter
6 in
Height
7.375 in
Overall Depth
7 3/8 in
Overall Diameter
6 in

Details

Item
Horn Strobe
Housing Material
Cast Aluminum
Mounting
Surface
Color
Blue Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
24V DC
Standards
cUL, UL
Indoor/Outdoor
Indoor
Decibels
85 dB
Sound Pattern
Pulse
Lens Color
Blue
Lamp Life
148,000 hr
Lamp Type
LED
Current Drawn
0.275 A
Operating Temp.
-31 Degrees to 160 Degrees F
Vibrating
Yes
Flashes per Minute
65
Visual Indicator Type
Beacon
Lens Material
Polycarbonate
Lens Design
Fresnel
Housing Color
Silver
Power Source
Wire
Features
Junction Box Base
Product Type
Horn and Light
For Location
Indoor, Outdoor
Includes Mounting Hardware
Mounting Hardware Included
Alarm Volume @ 1 m - Maximum
95 dB
Connection Type
Conduit Hole
Number of Sound Patterns
1
Light Operating Mode
Flashing
Mounting Style
Surface Mount
Sound Continuity
Pulse
Lifespan
148,000 hr
Vibration
No Vibration
Operating Temperature - Minimum
-31 Degrees F
Sound Style
Horn
Light Source
LED
Operating Current
0.275 A
Control Protocol
Direct Wire
Alarm Volume @ 10 ft - Maximum
85 dB
Operating Temperature - Maximum
150 Degrees F
Operating Voltage
24V DC
Power Source - TS Only
Wire

Description

The EDWARDS SIGNALING 51XBRFB24D is a surface-mount horn strobe with a pulsed audible signal and flashing blue visual indicator. It is rated for 24V DC operation and combines an 85 dB alarm at 10 ft with an LED beacon for audible and visual signaling applications in manufacturer-specified indoor and outdoor locations. The cast aluminum housing, polycarbonate Fresnel lens, and junction box base are configured for fixed installation with direct-wire connection.

Key Features:

  • Audible alarm type: Horn with pulse sound pattern and 1 sound pattern.
  • Alarm volume: 85 dB at 10 ft maximum; 95 dB at 1 m maximum.
  • Visual indicator: Flashing blue LED beacon with 65 flashes per minute.
  • Voltage and current: 24V DC, 0.275 A operating current draw.
  • Construction: Cast aluminum housing with blue polycarbonate Fresnel lens.
  • Mounting: Surface-mount installation with junction box base; mounting hardware included.
  • Connection and control: Conduit hole connection with direct-wire control protocol.
  • Size: 6 in diameter x 7.375 in height x 7 3/8 in overall depth.
  • Operating temperature range: -31 F to 160 F.
  • Listings: cUL, UL.
