Shop EDWARDS SIGNALING

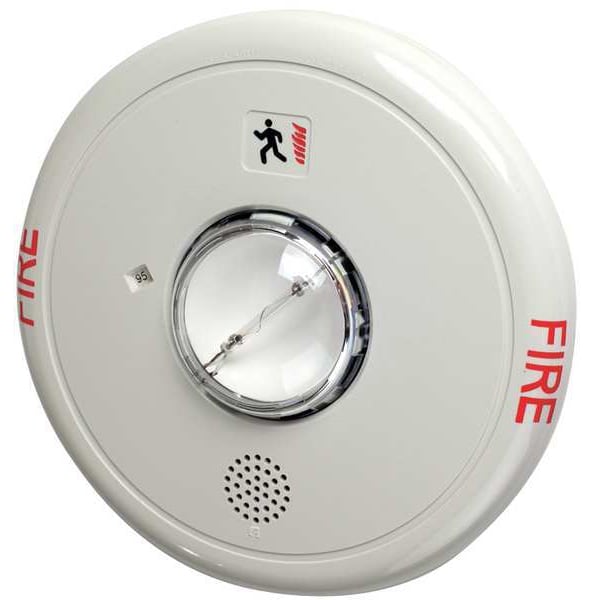

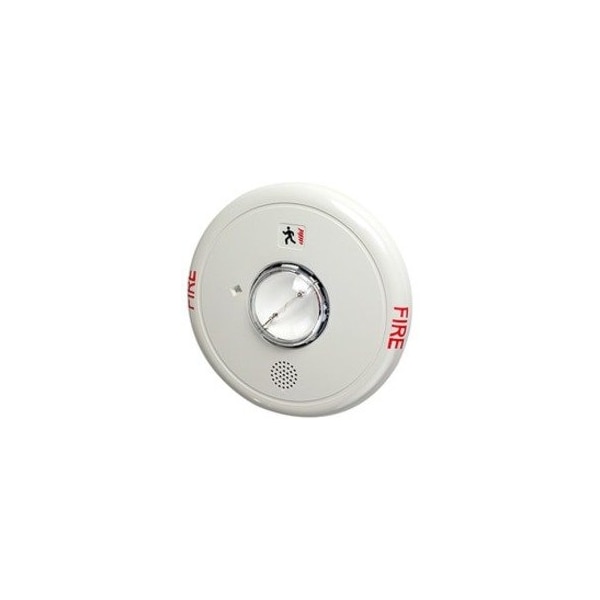

Horn Strobe, Marked Fire, Ceiling

  • Mfr # EGCF-HDVMH
  • Zoro # G6385041
product price:
$
104.99
/ea
Free Shipping & Returns

Key Features

Type
Marked Fire
Standards
CSFM Compliant, UL Listed, ULC Listed
Mounting
Flush or Surface
Indoor/Outdoor
Indoor
Voltage
16V DC to 33V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EGCF-HDVMH
Zoro #
G6385041
UPC #
782610480020
Country of Origin
China

Dimensions

Depth
0.6"
Width
1"
Overall Diameter
6 13/16 in
Overall Length
4 1/2 in
Overall Depth
13/16 in
Wire Rope Length
4 1/2 in
Length
4 1/2 in

Details

Item
Horn Strobe
Type
Marked Fire
Standards
CSFM Compliant, UL Listed, ULC Listed
Mounting
Flush or Surface
Indoor/Outdoor
Indoor
Voltage
16V DC to 33V DC
Enclosure Color
White
Peak Output (dBA)
96.6 dBA
Humidity Range (% RH)
93% RH
Flash (Candela)
95/115/150/177 cd
Alarm Current
341 to 570mA DC, 487 to 711mA FWR
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Finish
White
Product Type
Horn and Strobe
Application
Indoor
Light Source
Xenon
Alarm Volume @ 1 m - Maximum
95 dB
Lens Color
Clear
Operating Temperature - Maximum
120 Degrees F
Light Operating Mode
Strobe
Light Intensity
95 cd, 115 cd, 150 cd, 177 cd
Control Protocol
Direct Wire
Legend
FIRE
Alarm Volume @ 10 ft - Maximum
85 dB
Mounting Style
Flush Mount, Surface Mount
Power Source
Wire
Operating Temperature - Minimum
32 Degrees F
Housing Color
White
Sound Style
Horn
Housing Material
Plastic
Operating Voltage
16 to 33V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Horn Strobe, Marked Fire, Finish White, Flush or Surface Mounting, Alarm Current 341 to 570mA DC, 487 to 711mA FWR, Peak Output (dBA) 96.6, Flash (Candela) 95/115/150/177, Depth (In.) 13/16, Height (In.) 4-1/2, Length (In.) 2-3/4, Ambient Temp. Limits (F) 32 to 120, Humidity Range ( Percent RH) 93, Voltage 24VDC, FWR, Standards UL, ULC, CSFM
