Shop EDWARDS SIGNALING

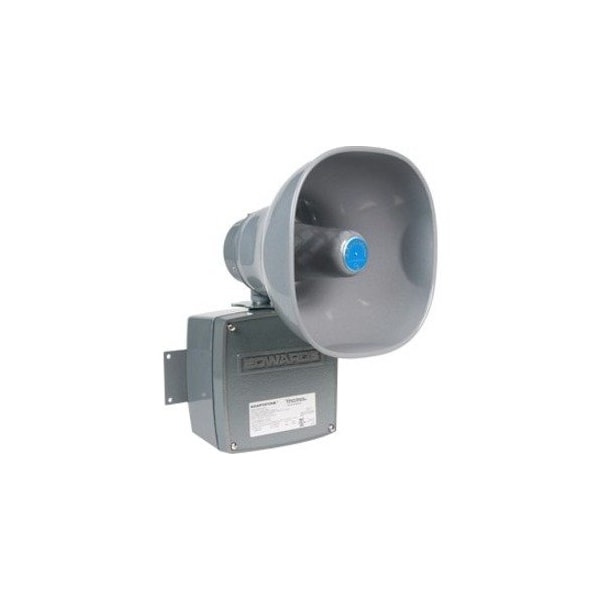

Multi-Tone Signal, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount

  • Mfr # 5531M-120N5

  • Zoro # G5672396

product price:  $1,998.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.38
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5531M-120N5
Zoro #
G5672396
UPC #
782640280140
Country of Origin
Mexico

Dimensions

Height
13 in
Depth
8.875 in
Width
8.25 in
Overall Width
8 in
Overall Length
13 3/4 in
Overall Depth
8 3/4 in
Wire Rope Length
13 3/4 in

Details

Item
Multi-Tone Signal
Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.38
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
cULus, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110 dB
Sound Pattern
Continuous
Hazardous Class
I, II, III
Hazardous Division
2
Operating Temp.
-31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non-Hazardous Locations
Vibrating
No
Visual Indicator Type
No Visual Indicator
Power Source
Battery
Features
Captive Components, Suitable for Division 2 Locations
Product Type
Tone Generator
Material
Zinc Alloy
Operating Temperature - Maximum
104 Degrees F
Operating Current
0.360 A
Includes Batteries
Batteries Included
Operating Temperature - Minimum
-31 Degrees F
Alarm Volume @ 10 ft - Maximum
110 dB
For Location
Indoor, Outdoor
IP Rating
IP44
NEMA Rating
NEMA 3R
Sound Style
Horn
Mounting Style
Surface Mount
Sound Continuity
Continuous
Number of Sound Patterns
55
Connection Type
Wire Leads
Alarm Volume @ 1 m - Minimum
95 dB
Alarm Volume @ 10 ft - Minimum
98 dB
For Hazardous Location
Class I, Division 2, Class II, Division 2
Vibration
No Vibration
Operating Voltage
120V AC
Power Source - TS Only
Battery

Description

EDWARDS SIGNALING 5531M-120N5 is a surface-mount multi-tone signal with a horn-style audible alarm and continuous sound output. It operates on 120V AC and produces up to 110 dB for audible warning applications in locations consistent with its listed ratings. The zinc alloy housing is rated for Class I, Division 2 and Class II, Division 2 hazardous locations, with NEMA 3R and IP44 enclosure ratings.

Key Features:

  • Audible alarm type: Horn
  • Sound style: Horn
  • Sound pattern: Continuous
  • Sound output: 110 dB maximum at 10 ft; 98 dB minimum at 10 ft; 95 dB minimum at 1 m
  • Multi-tone operation: 55 sound patterns
  • Voltage: 120V AC
  • Current draw: 0.38 A
  • Operating current: 0.360 A
  • Mounting: Conduit, surface mount
  • Connection type: Wire leads
  • Housing material: Zinc alloy
  • Color: Gray
  • Hazardous location ratings: Class I, Division 2; Class II, Division 2
  • Hazardous class: I, II, III
  • Hazardous division: 2
  • Enclosure ratings: NEMA 3R; IP44
  • Operating temperature: -31 to 104 Degrees F in hazardous locations; -40 to 151 Degrees F in non-hazardous locations
  • Features: Captive components
  • Standards: cULus, UL Listed
  • Visual indicator type: None
  • Vibration: None
  • Overall dimensions: 13-3/4 in L x 8 in W x 8-3/4 in D
