Shop EDWARDS SIGNALING

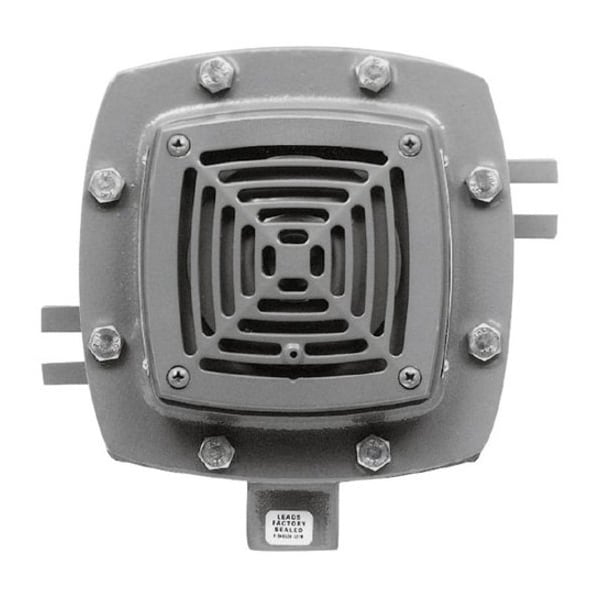

Vibrating Horn, Horn, Continuous, 24V DC, 97 dB, Heavy Duty Die Cast, Gray, Wall Mount

  • Mfr # 879DEX-G1

  • Zoro # G5599641

product price:  $1,586.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Wall
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
879DEX-G1
Zoro #
G5599641
UPC #
782640263198
Country of Origin
Mexico

Dimensions

Height
4.875 in
Width
4.875 in
Depth
3.3125 in
Overall Depth
3 5/16 in
Overall Width
4 7/8 in
Overall Length
4 7/8 in
Wire Rope Length
4 7/8 in

Details

Item
Vibrating Horn
Housing Material
Heavy Duty Die Cast
Mounting
Wall
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
Voltage
24V DC
Standards
CSA, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
97 dB
Sound Pattern
Continuous
Hazardous Division
1, 2
Operating Temp.
-13 Degrees to 104 Degrees F
Hazardous Class
I, II, III
Vibrating
Yes
Visual Indicator Type
No Visual Indicator
Features
Corrosion Resistant Heat Flowed Epoxy Finish, Low Current Drain
Product Type
Horn
Rating
NEMA 4X
Material
Heavy Duty Die Cast
IP Rating
NEMA 4X
Operating Current
0.160 A
Sound Principle
Vibrating
NEMA Rating
NEMA 4X
Sound Style
Horn
For Location
Indoor, Outdoor
Sound Continuity
Continuous
Operating Temperature - Maximum
104 Degrees F
Vibration
Vibrating
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2
Connection Type
Wire Leads
Number of Sound Patterns
1
Operating Temperature - Minimum
-13 Degrees F
Operating Voltage
24V DC

Description

The EDWARDS SIGNALING 879DEX-G1 is a vibrating horn for audible warning applications. It produces a continuous 97 dB horn signal, operates on 24V DC, and is rated for indoor and outdoor locations. The unit features a die-cast housing with a gray corrosion-resistant heat flowed epoxy finish and wall-mount installation.

Key Features:

  • Audible alarm type: Horn with vibrating sound principle
  • Sound output: 97 dB continuous signal
  • Voltage: 24V DC
  • Operating current: 0.160 A
  • Connection type: Wire leads
  • Construction: Die-cast housing
  • Finish: Gray corrosion-resistant heat flowed epoxy finish
  • Mounting: Wall mount
  • Location rating: Indoor/Outdoor
  • NEMA rating: NEMA 4X
  • Hazardous location ratings: Class I, Division 1; Class I, Division 2; Class II, Division 1; Class II, Division 2
  • Hazardous class/division: Class I, II, III; Division 1, 2
  • Operating temperature: -13°F to 104°F
  • Standards: CSA, UL Listed
  • Visual indicator type: None
  • Dimensions: 4.875 in H x 4.875 in W x 3.3125 in D
