Shop EDWARDS SIGNALING

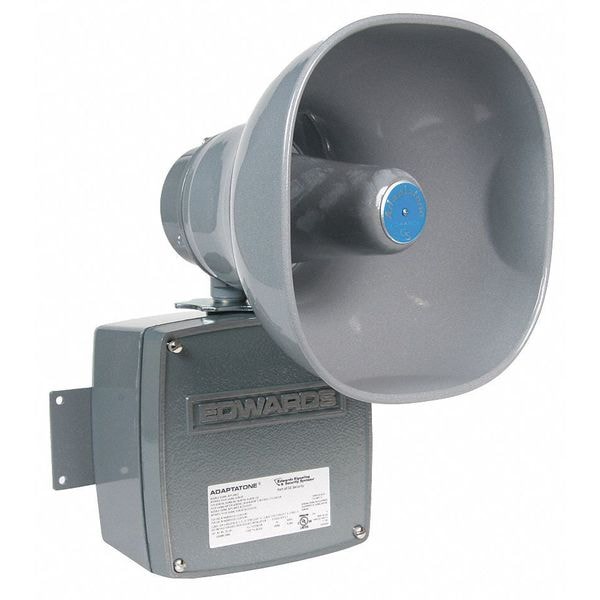

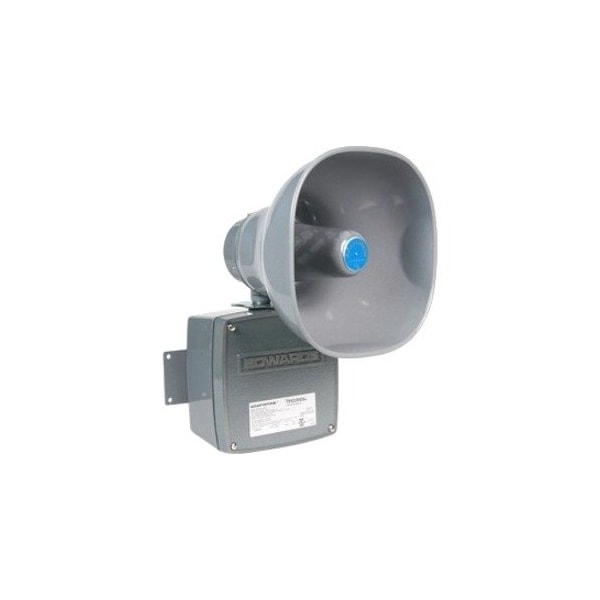

Multi-Tone Signal, Horn, Continuous, 24V AC/DC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount

  • Mfr # 5531M-24AQ

  • Zoro # G5544935

product price:
$
1,998.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.74 A @ 24V DC, 1.3 A @ 24V AC
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5531M-24AQ
Zoro #
G5544935
UPC #
782640280119
Country of Origin
Mexico

Dimensions

Width
8.25 in
Height
13 in
Depth
8.875 in
Overall Depth
8 3/4 in
Overall Width
8 in
Overall Length
13 3/4 in
Wire Rope Length
13 3/4 in
Length
13 3/4 in

Details

Item
Multi-Tone Signal
Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.74 A @ 24V DC, 1.3 A @ 24V AC
Color
Gray
Audible Alarm Type
Horn
Voltage
24V AC/DC
Standards
cULus, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110 dB
Sound Pattern
Continuous
Visual Indicator Type
No Visual Indicator
Hazardous Division
2
Vibrating
No
Operating Temp.
-31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non-Hazardous Locations
Hazardous Class
I, II, III
Power Source
Battery
Features
Captive Components, Suitable for Division 2 Locations
Product Type
Tone Generator
Material
Zinc Alloy
Includes Batteries
Batteries Included
IP Rating
IP44
Mounting Style
Surface Mount
Sound Style
Horn
Alarm Volume @ 10 ft - Minimum
98 dB
Vibration
No Vibration
Connection Type
Wire Leads
Operating Temperature - Maximum
104 Degrees F
For Hazardous Location
Class I, Division 2, Class II, Division 2
Alarm Volume @ 1 m - Minimum
95 dB
Operating Current
0.740 A
Alarm Volume @ 10 ft - Maximum
110 dB
Sound Continuity
Continuous
NEMA Rating
NEMA 3R
For Location
Indoor, Outdoor
Number of Sound Patterns
55
Operating Temperature - Minimum
-31 Degrees F
Operating Voltage
24V AC/DC
Power Source - TS Only
Battery
Power Source - old
Battery

Description

The EDWARDS SIGNALING 5531M-24AQ is a multi-tone horn signal for audible warning applications. It operates on 24V AC/DC, produces up to 110 dB, and provides 55 sound patterns. The unit features a gray zinc alloy housing and is designed for conduit, surface-mounted installation in indoor or outdoor locations.

Key Features:

  • Audible alarm type: Horn with continuous sound output.
  • Sound output: 110 dB maximum at 10 ft; 98 dB minimum at 10 ft; 95 dB minimum at 1 m.
  • Voltage: 24V AC/DC.
  • Current draw: 0.74 A at 24V DC; 1.3 A at 24V AC.
  • Construction: Gray zinc alloy housing.
  • Mounting/connection: Conduit, surface mount with wire leads.
  • Location ratings: Indoor/outdoor; NEMA 3R; IP44.
  • Hazardous location ratings: Class I, Division 2; Class II, Division 2; Class I, II, III; Division 2.
  • Operating temperature: -31°F to 104°F in hazardous locations; -40°F to 151°F in non-hazardous locations.
  • Additional features: Captive components; no visual indicator; no vibration.
  • Standards: cULus, UL Listed.
  • Overall size: 13 3/4 in. L x 8 in. W x 8 3/4 in. D.
