Shop EDWARDS SIGNALING

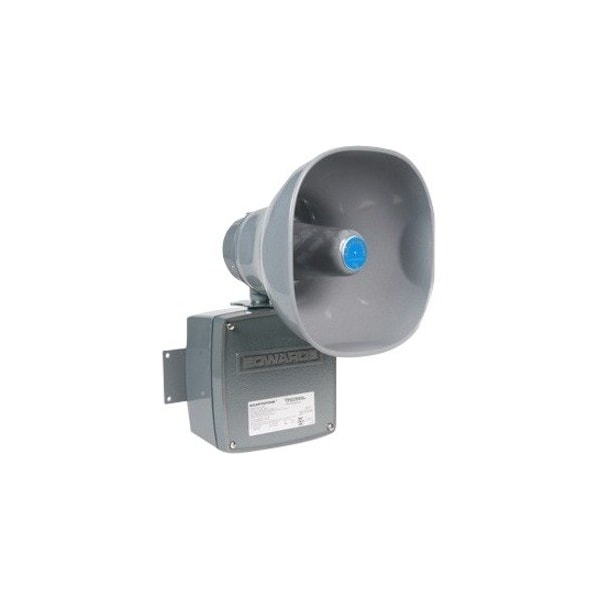

Multi-Tone Signal, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount

  • Mfr # 5531M-24N5

  • Zoro # G5813482

product price:  $1,971.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.36
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5531M-24N5
Zoro #
G5813482
UPC #
782640280126
Country of Origin
Mexico

Dimensions

Width
8.25 in
Height
13 in
Depth
8.875 in
Overall Depth
8 3/4 in
Overall Width
8 in
Overall Length
13 3/4 in

Details

Item
Multi-Tone Signal
Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.36
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
cULus, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110 dB
Sound Pattern
Continuous
Vibrating
No
Includes
(4) Input, (4) Output
Hazardous Class
I, II, III
Visual Indicator Type
No Visual Indicator
Operating Temp.
-31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non-Hazardous Locations
Hazardous Division
2
Power Source
Battery
Alarm Type
Audible
Input Voltage
120 V AC
Features
Captive Components, Suitable for Division 2 Locations
Product Type
Tone Generator
Material
Zinc Alloy
Sound Continuity
Continuous
For Hazardous Location
Class I, Division 2, Class II, Division 2
Operating Temperature - Maximum
104 Degrees F
Number of Sound Patterns
55
Operating Current
0.360 A
Mounting Style
Surface Mount
Alarm Volume @ 1 m - Minimum
95 dB
Alarm Volume @ 10 ft - Minimum
98 dB
IP Rating
IP44
For Location
Indoor, Outdoor
Alarm Volume @ 10 ft - Maximum
110 dB
Vibration
No Vibration
Operating Temperature - Minimum
-31 Degrees F
NEMA Rating
NEMA 3R
Sound Style
Horn
Connection Type
Wire Leads
Includes Batteries
Batteries Included
Operating Voltage
120V AC

Description

The EDWARDS SIGNALING 5531M-24N5 is a surface-mount multi-tone audible signal with a horn-style output and continuous sound pattern. It operates on 120V AC and produces 95 dB minimum at 1 m, with 98 dB minimum and up to 110 dB at 10 ft. The unit features a gray zinc alloy housing with conduit/surface mounting and is rated for audible warning and notification applications in locations consistent with the listed indoor/outdoor and hazardous-location ratings.

Key Features:

  • Audible horn with continuous sound output
  • 55 sound patterns
  • 120V AC operating voltage; 0.36 A operating current
  • Surface mount with conduit mounting and wire lead connection
  • Gray zinc alloy housing
  • Indoor/outdoor rating
  • Hazardous location ratings: Class I, Division 2; Class II, Division 2; Hazardous Class I, II, III; Hazardous Division 2
  • Ingress and enclosure ratings: IP44; NEMA 3R
  • Operating temperature: -31°F to 104°F in hazardous locations; -40°F to 151°F in non-hazardous locations
  • Captive components
  • cULus and UL Listed
  • Dimensions: 13 in. H x 8.25 in. W x 8.875 in. D
  • No visual indicator
