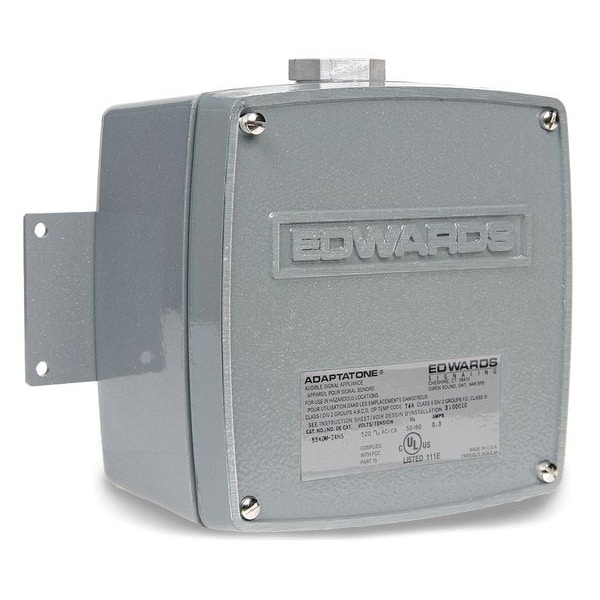

Tone Generator, Horn, Continuous, 24V AC/DC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount

  • Mfr # 5540M-24AQ
  • Zoro # G5764981
product price:
$
1,348.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.74 A @ 24V DC, 1.3 A @ 24V AC
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5540M-24AQ
Zoro #
G5764981
UPC #
782640280355
Country of Origin
Mexico

Dimensions

Height
4 in
Depth
3.5 in
Width
8 in
Overall Width
8 in
Overall Length
6 in
Overall Depth
3 1/2 in
Wire Rope Length
6 in
Length
6 in
Fits Chest Size
Captive Components, System-Wide Priority Tone Selection

Details

Item
Tone Generator
Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.74 A @ 24V DC, 1.3 A @ 24V AC
Color
Gray
Audible Alarm Type
Horn
Voltage
24V AC, 24V DC
Standards
cULus, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110 dB
Sound Pattern
Continuous
Hazardous Division
2
Hazardous Class
I, II, III
Visual Indicator Type
No Visual Indicator
Vibrating
No
Operating Temp.
-31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non - Hazardous Locations
Power Source
Wire
Features
Captive Components, System-Wide Priority Tone Selection
Material
Zinc Alloy
Product Type
Tone Generator
For Location
Indoor, Outdoor
For Hazardous Location
Class I, Division 2, Class II, Division 2
Operating Current
0.740 A, 1.300 A
Number of Sound Patterns
55
Sound Continuity
Continuous
Operating Temperature - Minimum
-31 Degrees F
NEMA Rating
NEMA 3R
Mounting Style
Surface Mount
IP Rating
IP44
Sound Style
Tone
Vibration
No Vibration
Volume Selection
Selectable Volume
Operating Temperature - Maximum
104 Degrees F
Connection Type
Wire Leads
Operating Voltage
24V AC/DC
Power Source - TS Only
Wire
Power Source - old
Wire
Shell Material
Zinc Alloy
Wire Color
Gray

Description

The EDWARDS SIGNALING 5540M-24AQ is a surface-mount tone generator with a horn-style audible output for audible signaling applications. It operates on 24V AC/DC and produces a continuous 110 dB signal, with 55 sound patterns and system-wide priority tone selection. The zinc alloy housing is rated IP44 and NEMA 3R and supports conduit mounting.

Key Features:

  • Audible alarm type: Horn with tone sound style and continuous sound pattern
  • Sound output: 110 dB
  • Voltage: 24V AC/DC
  • Current draw: 0.74 A at 24V DC / 1.3 A at 24V AC
  • Number of sound patterns: 55
  • Volume selection: Selectable volume
  • Connection type: Wire leads
  • Power source: Wire
  • Mounting: Conduit, surface mount
  • Housing material: Zinc alloy
  • Color: Gray
  • Ratings: IP44, NEMA 3R
  • Hazardous location classifications: Class I, Division 2; Class II, Division 2; Class I, II, III; Division 2
  • Operating temperature: -31 to 104 degrees F in hazardous locations; -40 to 151 degrees F in non-hazardous locations
  • Standards: cULus, UL Listed
  • Features: Captive components, system-wide priority tone selection
  • Visual indicator: None
  • Vibration: None
  • Overall size: 8 in. W x 6 in. L x 3-1/2 in. D
