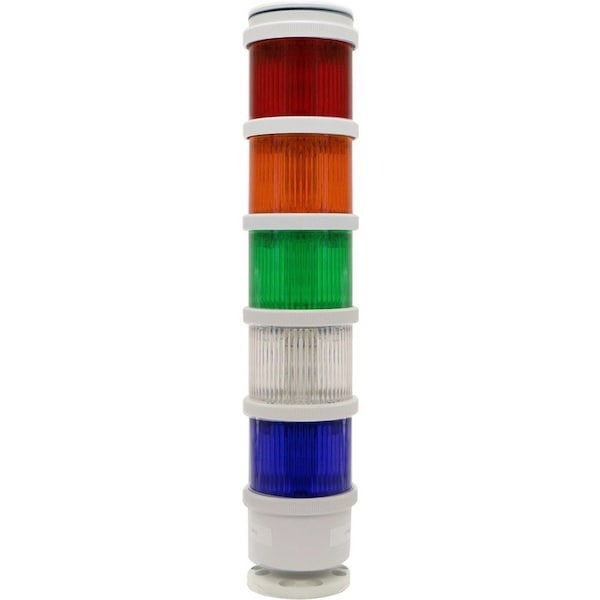

Tower Light Module, 24V AC, 24V DC, Red, 70 mm Dia., 3 1/8 in Height, LED, 270BC Series

  • Mfr # 270LEDMR24AD

  • Zoro # G5554367


product price: $184.99
/ea
Free Shipping & Returns

Key Features

Standards
CE Approved, cULus Listed
Voltage
24V AC, 24V DC
Overall Diameter
70 mm
Housing Material
Polycarbonate
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
270LEDMR24AD
Zoro #
G5554367
UPC #
782640325841
Country of Origin
Italy

Dimensions

Overall Diameter
70 mm
Overall Height
3 1/8 in
Diameter
70 mm
Height
3.11 in
Width
2.83 in

Details

Item
Tower Light Module
Standards
CE Approved, cULus Listed
Voltage
24V AC, 24V DC
Housing Material
Polycarbonate
Lighting Technology
LED
Current Drawn
0.085A AC, 0.065A DC
Includes
Gasket
Flashes per Minute
75, 85
Color
Red
Tower Light Series
270BC
Lens Material
Polycarbonate
For Use With
200 Class 70mm Stacklight(TM)
Tower Light Color
Red
Lamp Type
Led
NEMA Rating
NEMA 3R, NEMA 4X
Lamp Life
100,000 hr
Lens Design
Simple
Operating Temp.
-22 Degrees to 122 Degrees F
Mounting
Base
Rating
UL
Light Color
Red
Operating Voltage
24V AC, 24V DC
Lens Shape
Dome
Compatible Series
200 Class
IP Rating
IP54, IP65
For Location
Indoor, Outdoor
Light Source
LED
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
122 Degrees F
Housing Color
Gray
Light Operating Mode
Flashing, Steady
Operating Current
0.065 A @ 24V DC, 0.085 A @ 24V AC
Lifespan
100,000 hr

Description

Tower Light Series 270BC, Voltage 24V AC/DC, Tower Light Color Red, Diameter 70 mm, NEMA Rating NEMA 3R, NEMA 4X, Lighting Technology LED, 75, 85 Flashes per Minute, Lamp Life 100,000 hr, Housing Material Polycarbonate, Lens Design Simple, Lens Material Polycarbonate, Operating Temp. -22 Degrees to 122 Degrees F, Standards CE Approved, cULus Listed, Current Drawn 0.085A AC, 0.065A DC, Height 3.11 in, Width 2.83 in, For Use With 200 Class 70mm Stacklight(TM), Includes Gasket
