Shop EDWARDS SIGNALING

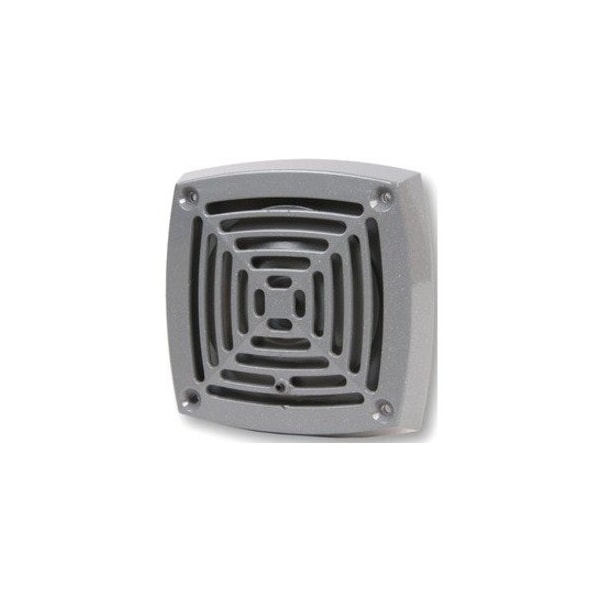

Vibrating Horn, Horn, Continuous, 24V AC, 103 dB, Heavy Duty Die Cast, Gray, Surface Mount

  • Mfr # 870P-G5

  • Zoro # G4667914

product price:  $149.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Surface
Amps
0.63
Color
Gray
Audible Alarm Type
Horn
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
870P-G5
Zoro #
G4667914
UPC #
782640600054
Country of Origin
Mexico

Dimensions

Width
4.625 in
Height
4.625 in
Depth
1.875 in
Overall Depth
1 7/8 in
Overall Length
4 5/8 in
Overall Width
4 5/8 in

Details

Item
Vibrating Horn
Housing Material
Heavy Duty Die Cast
Mounting
Surface
Amps
0.63
Color
Gray
Audible Alarm Type
Horn
Voltage
24V AC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
103 dB
Sound Pattern
Continuous
Visual Indicator Type
No Visual Indicator
Vibrating
Yes
Power Source
Wire
Includes
Enclosure, Gasket
Features
Completely Assembled, Corrosion Resistant Finish
Rating
NEMA 4X
Material
Heavy Duty Die Cast
Product Type
Horn
Number of Sound Patterns
1
NEMA Rating
NEMA 4X
Volume Selection
Selectable Volume
Sound Continuity
Continuous
Operating Current
0.630 A
Alarm Volume @ 10 ft - Maximum
103 dB
Sound Principle
Vibrating
Vibration
Vibrating
Sound Style
Horn
Mounting Style
Surface Mount
Alarm Volume @ 1 m - Maximum
113 dB
Connection Type
Plug-In Assembly
IP Rating
NEMA 4X
For Location
Indoor
Operating Voltage
24V AC

Description

EDWARDS SIGNALING 870P-G5 is a vibrating horn for audible warning applications. It produces a continuous horn signal at 24V AC and is intended for indoor surface-mount installation. The die-cast housing has a gray finish for facilities requiring a dedicated audible signal without a visual indicator.

Key Features:

  • Audible alarm type: Horn with vibrating sound principle
  • Sound pattern: Continuous; number of sound patterns: 1
  • Sound output: 103 dB at 10 ft maximum; 113 dB at 1 m maximum
  • Operating voltage: 24V AC
  • Operating current: 0.630 A
  • Mounting style: Surface mount
  • Housing/material: Die cast
  • Finish/features: Gray housing; assembled
  • Enclosure rating: NEMA 4X
  • Standards: UL Listed
  • Includes: Enclosure and gasket
  • Visual indicator type: None
  • Dimensions: 4.625 in H x 4.625 in W x 1.875 in D
