Shop EDWARDS SIGNALING

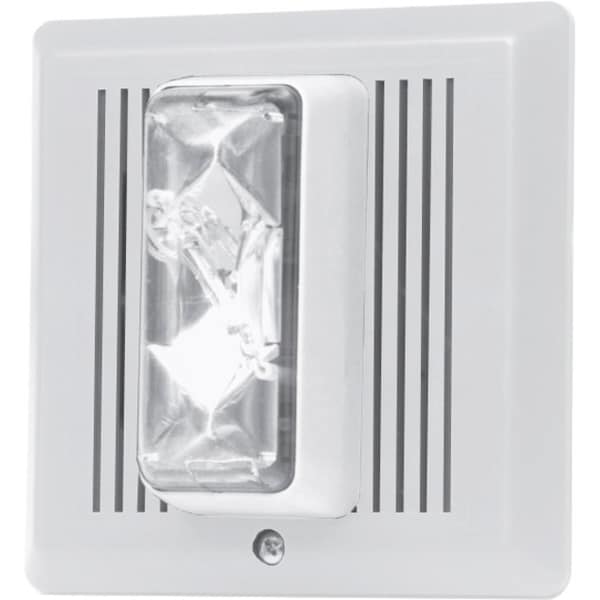

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Clear Lens, Gray Housing

  • Mfr # 868STRC-AQ

  • Zoro # G5752975

product price:
$
464.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Clear Lens, Gray Housing
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
868STRC-AQ
Zoro #
G5752975
UPC #
782640239469
Country of Origin
Mexico

Dimensions

Depth
0.625 in
Width
5.5 in
Height
5.5 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Overall Width
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Clear Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
24 V AC, 24V DC
Standards
UL Listed
Indoor/Outdoor
Outdoor
Decibels
90 dB
Sound Pattern
Continuous
Operating Temp.
32 Degrees to 120 Degrees F
Housing Color
Gray
Vibrating
No
Light Output
150 CP
Lens Color
Clear
Flashes per Minute
60
Visual Indicator Type
Strobe
Current Drawn
462 mA @ 24V AC, 412 mA @ 24V DC
Power Source
Wire
Product Type
Horn and Strobe
Brightness Selection
Fixed Brightness
Number of Sound Patterns
1
Alarm Volume @ 10 ft - Maximum
90 dB
Alarm Volume @ 1 m - Maximum
100 dB
Mounting Style
Surface Mount
For Location
Outdoor
Control Protocol
Direct Wire
Sound Style
Horn
Connection Type
Wire Leads
Vibration
No Vibration
Operating Temperature - Minimum
-31 Degrees F
Operating Current
0.462 A @ 24V AC, 0.412 A @ 24V DC
Operating Temperature - Maximum
150 Degrees F
Sound Continuity
Continuous
Light Source
Xenon
Light Intensity
150 CP
Light Operating Mode
Strobe
Operating Voltage
24 V AC, 24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 868STRC-AQ is an outdoor horn strobe that combines an audible horn and xenon strobe in a direct-wire unit. It operates on 24V AC or 24V DC and provides a continuous horn signal in a gray thermoplastic housing with a clear lens for surface-mounted signaling applications.

Key Features:

  • Audible and visual signaling device with horn and strobe functions
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Sound pattern: continuous horn
  • Light output: 150 CP xenon strobe flashing at 60 flashes per minute
  • Voltage: 24V AC, 24V DC
  • Current draw: 462 mA at 24V AC; 412 mA at 24V DC
  • Gray thermoplastic housing with clear lens
  • Surface-mount design with wire leads and direct-wire connection
  • Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
  • Outdoor rating
  • UL Listed
