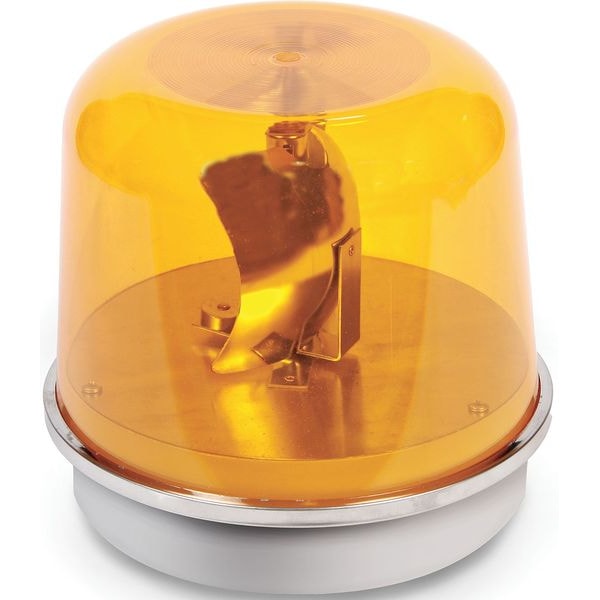

Warning Light, Amber, 100W Halogen, 120V AC, 75 FPM, 8 1/16 in Dia., 3/4 in NPT Pipe

Mfr # 94PLEDMA120A
Zoro # G5654302

1,074.99

Free Shipping & Returns

Key Features

Color

Amber

Lamp Type

100W Halogen

Power Source

Wire

Lamp Life

1,000 hr

Lens Material

Polycarbonate

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 94PLEDMA120A
Zoro #: G5654302
UPC #: 782640307700
Country of Origin: United States

Dimensions

Height: 7 7/8 in
Overall Diameter: 8 1/16 in
Diameter: 8 1/16 in
Footprint Diameter: 8 1/16 in
Overall Depth: 7 7/8 in

Details

Item: Warning Light
Color: Amber
Lamp Type: 100W Halogen
Power Source: Wire
Lamp Life: 1,000 hr
Lens Material: Polycarbonate
Flashes per Minute: 75
Housing Material: Cast Steel
Standards: cULus
Features: Bayonet Lamp Socket, Motor Driven Reflector
Voltage: 120V AC
Rating: Div 2 Hazardous Location NEMA 4X
Light Output: 1800 Lumens
Mounting: 3/4 in NPT Pipe
Current Drawn: 1A AC
Lens Design: Dome
Product Type: Warning Light
NEMA Rating: NEMA 4X
Connection Type: Wire Leads
For Location: Indoor, Outdoor
Lifespan: 1,000 hr
Lens Color: Amber
Control Protocol: Direct Wire
Operating Current: 1 A
IO-Link Compatibility: Not IO-Link Compatible
Brightness Selection: Fixed Brightness
Lamp Color: Clear
Includes Mounting Hardware: No Mounting Hardware
Light Operating Mode: Rotating
Requires Base: Base Not Required
Wattage: 100 W
Lens Shape: Dome
Light Intensity: 1,800 lm
Mounting Style: Surface Mount
Light Source: Halogen
Mounting Mechanism: 3/4 in NPT
Operating Temperature - Minimum: -31 Degrees F
Operating Temperature - Maximum: 150 Degrees F
For Hazardous Location: Class I, Division 2, Class II, Division 2, Class III, Division 1
Operating Voltage: 120V AC
Power Source - TS Only: Wire
Power Source - old: Wire

Description

Warning Light, Color Amber, Lamp Type 100W Halogen, Flashes per Minute 75, Light Output 1800 Lumens, Lamp Life 1,000 hr, Lens Design Dome, Lens Material Polycarbonate, Housing Material Cast Steel, Mounting 3/4 in NPT Pipe, Rating Div 2 Hazardous Location NEMA 4X, Power Source Wire, Current Drawn 1A AC, Height 7 7/8 in
