  11. Fixed Gas Detector, C3H8, CH4, 0 to25% LEL

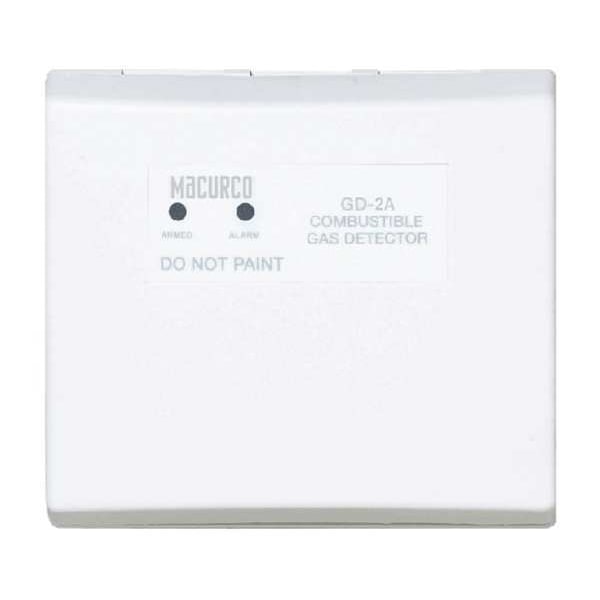

Macurco Fixed Gas Detector, C3H8, CH4, 0 to25% LEL GD-2A - main

Fixed Gas Detector, C3H8, CH4, 0 to25% LEL

  • Mfr # GD-2A

  • Zoro # G9476503

product price: $193.99
/ea
Free Shipping & Returns

Key Features

For Use With
Fire and Security Systems
Gas Detected
Combustible Gas
Chemical Formula
C3H8
Sensor Range
0 to 25% LEL
Operating Temp. Range
32 Degrees to 120 Degrees F (0 Degrees to 48.9 Degrees C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GD-2A
Zoro #
G9476503
UPC #
051131495487
Country of Origin
United States

Dimensions

Height
4 in
Width
5 in
Depth
1 5/8 in
Manufacturer Warranty Length
2 yr
Overall Width
1.62 in
Overall Height
4.5 in
Overall Depth
1.62 in

Details

Item
Fixed Gas Detector
For Use With
Fire and Security Systems
Gas Detected
Combustible Gas
Chemical Formula
C3H8
Sensor Range
0 to 25% LEL
Operating Temp. Range
32 Degrees to 120 Degrees F (0 Degrees to 48.9 Degrees C)
Features
N.C. Trouble/Supervisory Relay, N.O. or N.C. Alarm Relay
Gas Type
C3H8, CH4
Includes
Manual
Connection
Plugs/Terminals
Standards
UL Listed
Alarm Type
Visual
Display
No
Status Indicator
LED
Color
White
Power Required
12 to 24V AC/DC
Number of Channels
2
Product Type
Fixed Gas Detector
Sensor Life
5 yr
Number of Gases Detected
1
Number of Relays
2
Alarm Volume Level
85 dB
Housing Color
White
Power Source
Wire Harness
Operating Temperature - Maximum
120 Degrees F
Market
Commercial, Residential
Visual Alert Type
Green LED, Red LED
Operating Temperature - Minimum
32 Degrees F
Coverage Area
900 sq ft
Number of Sensors
1
Alarm Setting
Combustible (25% of LEL)
Alert Type
Sound
Input Current
100 mA @ 12V AC, 35 mA @ 24V DC, 65 mA @ 24V AC, 70 mA @ 12V DC
Output Channels
2
Ties Into
Burglary Alarm Panels, Fire Alarm Panels
Operating Voltage
12 to 24V AC/V DC
Voltage
12 to 24V AC/V DC

Description

Fixed Gas Detector, For Use With Fire and Security Systems, Gas Detected Combustible Gas, Standards UL Listed, Includes Manual, Product Type Fixed Gas Detector, Mounting Location Flush, Number of Relays 2, Visual Alert Type Green LED, Red LED, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 120 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Power Source Wire Harness, Features N.C. Trouble/Supervisory Relay, N.O. or N.C. Alarm Relay
