  11. Warning Light, Red, LED, 120V AC, 65 FPM, 3 3/4 in Dia., Surface

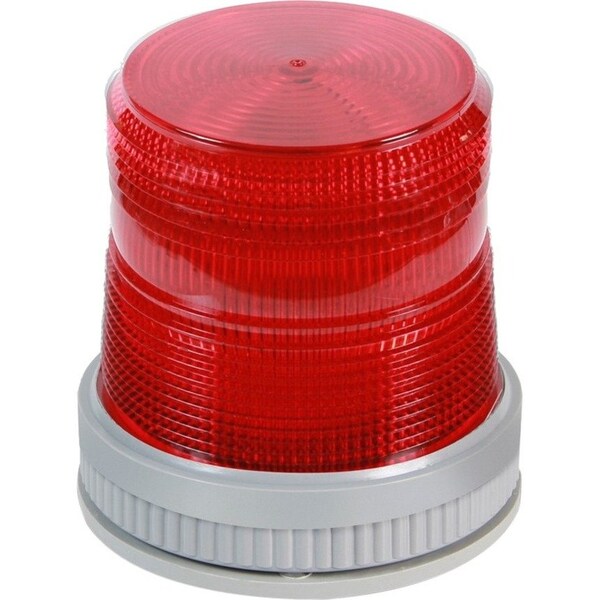

Edwards Signaling Warning Light, Red, LED, 120V AC, 65 FPM, 3 3/4 in Dia., Surface 105XBRMR120A - main

Warning Light, Red, LED, 120V AC, 65 FPM, 3 3/4 in Dia., Surface

  • Mfr # 105XBRMR120A

  • Zoro # G5498473

product price: $438.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
105XBRMR120A
Zoro #
G5498473
UPC #
782640052273
Country of Origin
United States

Dimensions

Height
4 3/4 in
Overall Diameter
3 3/4 in
Diameter
3 3/4 in
Width
3.8"
Depth
3.8"
Lead Length
18 in
Overall Depth
4 3/4 in
Footprint Diameter
3 3/4 in

Details

Item
Warning Light
Color
Red
Lamp Type
LED
Power Source
Wire
Lamp Life
148,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
Glass Reinforced Thermoplastic Polyester Resin
Standards
cUL, UL
Features
Shatter Resistant
Voltage
120V AC
Current Drawn
0.108A AC
Mounting
Surface
Rating
UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III
For Use With
Marine, Outdoor, Industrial
Lens Design
Fresnel
Product Type
Warning Light
Material
Polyethylene Terephthalate (PET), Glass Reinforced Thermoplastic Polyester Resin
Connection Type
Wire Leads
Tower Light Color
Red
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
For Hazardous Location
Class I, Division 2, Class II, Division 2, Class III
Requires Base
Base Required
Mounting Style
Surface Mount
Lamp Color
Red
Operating Temperature - Maximum
212 Degrees F
Includes Mounting Hardware
No Mounting Hardware
Lens Color
Red
Light Source
LED
Housing Color
Gray
IO-Link Compatibility
Not IO-Link Compatible
Lifespan
148,000 hr
Vibration
No Vibration
Operating Current
0.108 A
Mounting Mechanism
3/4 in NPT
Operating Temperature - Minimum
-31 Degrees F
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Light Operating Mode
Flashing, Steady
Operating Voltage
120V AC

Description

Warning Light, Color Red, Lamp Type LED, Flashes per Minute 65, Lamp Life 148,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Thermoplastic Polyester Resin, Mounting Surface, Rating UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III, Power Source Wire, Current Drawn 0.108A AC, Height 4 3/4 in
