This item is Discontinued.

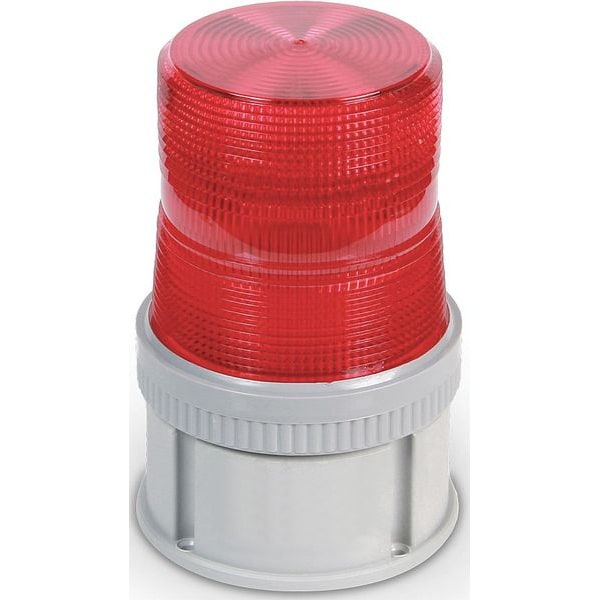

Edwards Signaling Warning Light, Strobe Tube, 120VAC, Red 105HISTR-N5

Warning Light, Strobe Tube, 120VAC, Red (Discontinued)

  • Mfr # 105HISTR-N5
  • Zoro # G6200555
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
105HISTR-N5
Zoro #
G6200555
UPC #
782640267394
Country of Origin
United States

Dimensions

Height
6 3/4 in
Diameter
4 1/2 in
Width
4.5"
Overall Diameter
4 1/2 in
Overall Depth
6 3/4 in

Details

Item
Warning Light
Color
Red
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
3,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
Glass Reinforced Thermoplastic Polyester Resin
Standards
cULus
Features
Corrosion Resistant, Shatter Resistant
Mounting
Surface
Current Drawn
0.1A AC
Rating
UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III
For Use With
Outdoor, Indoor, Industrial, Marine
Lens Design
Fresnel
Light Output
800000 cd
Product Type
Strobe Light
Connection Type
Wire Leads
Audible Alarm Type
Visual
Voltage
120 V AC
Material
Polyethylene Terephthalate (PET), Glass Reinforced Thermoplastic Polyester Resin
NEMA Rating
NEMA 4X
Lens Color
Red
Operating Current
0.100 A
Operating Temperature - Maximum
572 Degrees F
Lifespan
3,000 hr
For Location
Indoor, Outdoor
Light Intensity
800,000 cd
Light Source
Xenon
For Hazardous Location
Class I, Division 2, Class II, Division 2
Mounting Mechanism
Bracket
Control Protocol
Direct Wire
Includes Mounting Hardware
No Mounting Hardware
Mounting Style
Surface Mount
Light Operating Mode
Strobe
IO-Link Compatibility
Not IO-Link Compatible
Brightness Selection
Fixed Brightness

Description

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 65, Lamp Life 3,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Thermoplastic Polyester Resin, Mounting Surface, Rating UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III, Power Source Wire, Current Drawn 0.1A AC, Height 6 3/4 in
