Eldon James

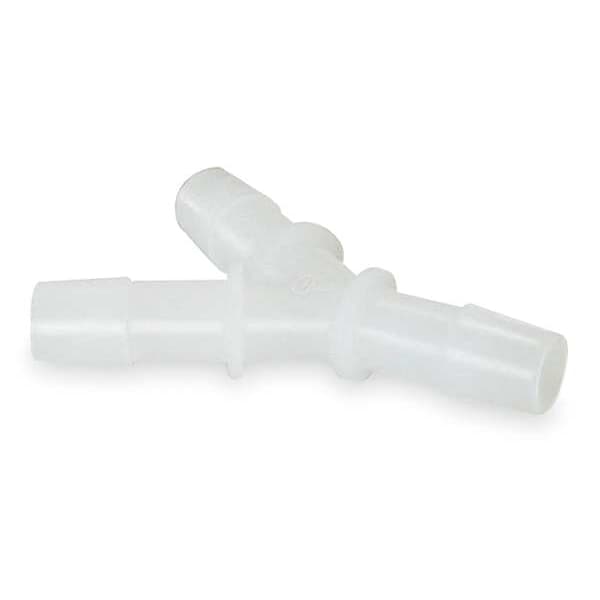

Y Connector, 1/8 In, PVC, PK10

original price: $11.09
5% off
new price: $10.49
/pk 5, $2.10/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material PVDF
  • Specific Fitting Shape Wye
  • Barb Size 1/8 in
  • Fitting Connection Type Barbed
  • Color Natural
See all product information

Product Information

Dimensions

Barb Size 1/8 in
Fitting Side C Tube Inner Diameter 1/8 in
Fitting Side B Tube Inner Diameter 1/8 in
Fitting Side A Tube Inner Diameter 1/8 in

Details

Item Y Connector
Tube Fitting Material PVDF
Specific Fitting Shape Wye
Fitting Connection Type Barbed
Color Natural
Standards RoHS
Basic Pipe Fitting Material Plastic
Compliance RoHS Compliant
Pipe Fitting Connection Type Barbed
Specific Pipe Fitting Shape Wye
Max. Pressure 260 psi @ 70 Degrees F
Basic Pipe Fitting Shape Wye
Temp. Range -80 Degrees to 226 Degrees F
Resistance Properties Chemical-Resistant
Application Acids, Chemicals, Deio Water, Solvents
Fitting Side A Connection Type Barbed
Fitting Side B Connection Type Barbed
Minimum Operating Temperature 80 Degrees F
Barb Style Single Barb
Fitting Side C Connection Type Barbed
Fitting Material PVDF
Maximum Operating Temperature 226 Degrees F
Maximum Operating Pressure 260 psi @ 70 Degrees F

Description

Y Connector, Specific Fitting Shape Wye, Application Acids, Chemicals, Deio Water, Solvents, Barb Style Single Barb, Fitting Material PVDF, Fitting Side A Connection Type Barbed, Fitting Side A Tube Inner Diameter 1/8 in, Fitting Side B Connection Type Barbed, Fitting Side B Tube Inner Diameter 1/8 in, Fitting Side C Connection Type Barbed, Fitting Side C Tube Inner Diameter 1/8 in, Maximum Operating Pressure 260 psi @ 70 Degrees F, Maximum Operating Temperature 226 Degrees F, Standards RoHS
