  5. On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 20 5/8 in H, 18 1/16 in W

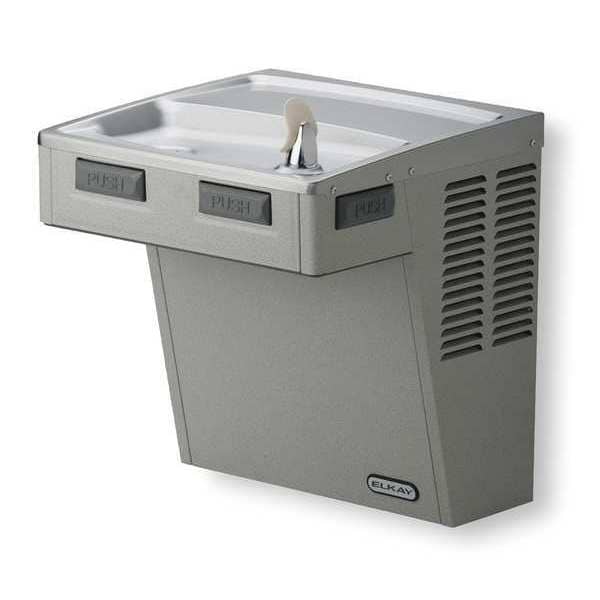

Elkay On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 20 5/8 in H, 18 1/16 in W EMABF8L - main
Shop ELKAY

On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 20 5/8 in H, 18 1/16 in W

  • Mfr # EMABF8L

  • Zoro # G1904052

product price:  $811.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EMABF8L
Zoro #
G1904052
UPC #
094902407586
Country of Origin
United States

Dimensions

Depth
18 5/8 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
20 5/8 in
Width
18 1/16 in
Overall Height
20 5/8 in
Overall Width
18 1/8 in
Mounting Hole Diameter
7/16 in
Overall Depth
18 5/8 in
Drain Outside Diameter
1 1/4 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Inlet Tube Outside Diameter
1/4 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Color
Gray
Refrigerant
R134A
Full Load Amps
5 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Single Drinking Fountain
Dispenser Operation
Front and Side Pushbar
Cold Water Capacity
8 gph
Drain Connection
1 1/4 in
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Vandal Resistant
No
Water Temp.
50 Degrees F
Includes
Strainer
Dispenser Design
Wall
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Inlet
3/8 in OD
Refrigerated / Non-Refrigerated
Refrigerated
Features
Mechanical Bubbler Push Bars, Provides Chilled Water
Housing Color
Gray
Cooling Capacity
8 gph @ 50 Degrees F
Housing Finish
Vinyl Clad
Maximum Constant Stream Pressure
105 psi
Fountain Actuation
Front Pushbar/Side Pushbar
Basin Material
Stainless Steel
Station Type
Single Fountain
Includes Back Panel
No
Temperature Adjustment
Factory Set but Adjustable
Operating Voltage
115V AC
Environment
Indoor
Full Load Current
5 A
Power Consumption
370 W
Includes Water Filter
No
Includes Pet Bowl
No
Number of Bubblers
1
Refrigerant Type
R134A
Minimum Constant Stream Pressure
20 psi
Refrigeration
Refrigerated
Power Source
Electric Corded
Antimicrobial
No
Compressor Horsepower
1/5 hp
Product Weight
58 lb
Minimum Supply Line Pressure
20 psi
Bi-Level Field Adjustable
No
Number of Mounting Holes
3
Maximum Cold Water Temperature
50 Degrees F

Description

Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation.
