  5. On-Wall Drinking Fountain with Bottle Filler, 1 Level, 19 in D, 38 5/8 in H, 18 3/8 in W

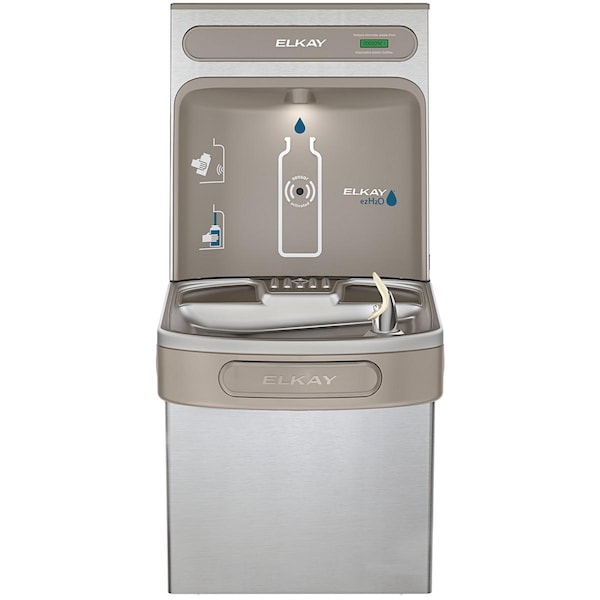

Elkay On-Wall Drinking Fountain with Bottle Filler, 1 Level, 19 in D, 38 5/8 in H, 18 3/8 in W EZS8WSSK - main

On-Wall Drinking Fountain with Bottle Filler, 1 Level, 19 in D, 38 5/8 in H, 18 3/8 in W

  • Mfr # EZS8WSSK

  • Zoro # G0054927

product price:  $1,604.99
/ea
Item requires special delivery charges. A $180.00 per item surcharge will be applied.

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EZS8WSSK
Zoro #
G0054927
UPC #
094902745893
Country of Origin
United States

Dimensions

Height
38 5/8 in
Width
18 3/8 in
Depth
19 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Overall Width
18 3/8 in
Overall Height
39 1/8 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Bottle Filler Depth
3 5/8 in
Drain Outside Diameter
1 1/4 in
Overall Depth
19 in
Bottle Filler Width
17 7/8 in
Mounting Hole Diameter
7/16 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Material
Stainless Steel
Color
Silver
Refrigerant
R134A
Full Load Amps
5 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain, Touchless Bottle Filler
Item
Drinking Fountain with Bottle Filler
Vandal Resistant
No
Inlet
3/8 in OD
Drain Connection
1 1/4 in
Cold Water Capacity
8 gph
Compliance
Accessibility,Water Quality Including Lead, Electrical
Includes
Sensor for the Bottle Filler, Strainer
Dispenser Operation
Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)
Refrigerated / Non-Refrigerated
Refrigerated
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 61, UL 399
Dispenser Design
Wall
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Water Temp.
50 Degrees F
Features
Green Ticker, Hands Free, Laminar Flow, Real Drain
Includes Water Filter
No
Environment
Indoor
Power Consumption
370 W
Housing Finish
Plain
Temperature Adjustment
Factory Set but Adjustable
Includes Back Panel
No
Bottle Dispenser Actuation
Sensor
Bi-Level Field Adjustable
No
Station Type
Bottle Filling Dispenser, Single Fountain
Operating Voltage
115V AC
Cooling Capacity
8 gph @ 50 Degrees F
Maximum Constant Stream Pressure
105 psi
Product Weight
82 lb
Maximum Cold Water Temperature
50 Degrees F
Housing Color
Silver
Number of Bubblers
1
Full Load Current
6 A
Fountain Actuation
Front Pushbar/Side Pushbar
Refrigerant Type
R134A
Includes Pet Bowl
No
Power Source
Electric Corded
Minimum Constant Stream Pressure
20 psi
Housing Material
Stainless Steel
Minimum Supply Line Pressure
20 psi
Refrigeration
Refrigerated
Antimicrobial
Yes
Compressor Horsepower
1/5 hp

Description

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
