  5. On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W

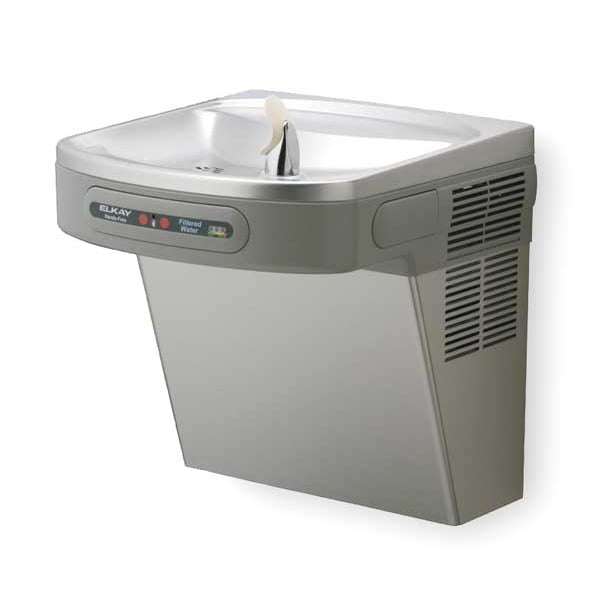

Elkay On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W LZO8S - main
Shop ELKAY

On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W

  • Mfr # LZO8S

  • Zoro # G8705234

product price:  $1,199.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LZO8S
Zoro #
G8705234
UPC #
094902428277
Country of Origin
United States

Dimensions

Depth
19 in
Width
18 3/8 in
Height
19 13/16 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Overall Height
19 7/8 in
Overall Width
18 3/8 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
19 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/4 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Material
Stainless Steel
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Touchless Fountain
Item
Single Drinking Fountain
Water Temp.
50 Degrees F
Cold Water Capacity
8 gph
Inlet
3/8 in OD
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Vandal Resistant
No
Dispenser Operation
Electronic Sensor
Dispenser Design
Wall
Refrigerated / Non-Refrigerated
Refrigerated
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Drain Connection
1 1/4 in
Includes
Filter
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Number of Bubblers
1
Environment
Indoor
Bi-Level Field Adjustable
No
Number of Mounting Holes
9
Temperature Adjustment
Factory Set but Adjustable
Cooling Capacity
8 gph @ 50 Degrees F
Compressor Horsepower
1/5 hp
Includes Back Panel
No
Includes Water Filter
Yes
Housing Finish
Plain
Refrigeration
Refrigerated
Power Source
Electric Corded
Operating Voltage
115V AC
Maximum Constant Stream Pressure
105 psi
Includes Pet Bowl
No
Fountain Actuation
Sensor
Product Weight
54 lb
Maximum Cold Water Temperature
50 Degrees F
Housing Color
Silver
Minimum Constant Stream Pressure
20 psi
Full Load Current
5 A
Refrigerant Type
R134A
Antimicrobial
No
Power Consumption
370 W
Station Type
Single Fountain

Description

The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
