  5. On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W

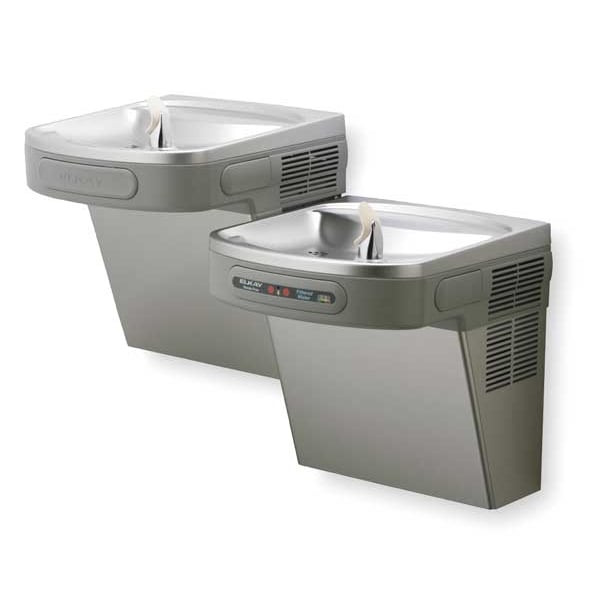

Elkay On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W LZOSTL8SC - main

On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W

  • Mfr # LZOSTL8SC

  • Zoro # G8705243

product price:  $1,684.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LZOSTL8SC
Zoro #
G8705243
UPC #
094902428338
Country of Origin
United States

Dimensions

Height
25 5/16 in
Width
36 3/4 in
Depth
19 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Overall Height
25 3/8 in
Overall Width
36 3/4 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
19 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Material
Stainless Steel
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Touchless Fountain
Item
Two-Level Drinking Fountain
Cold Water Capacity
8 gph
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Dispenser Operation
Front Push Button
Includes
Filter
Inlet
3/8 in OD
Dispenser Design
Wall
Refrigerated / Non-Refrigerated
Refrigerated
Drain Connection
1 1/2 in
Vandal Resistant
No
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Water Temp.
50 Degrees F
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Product Weight
74 lb
Power Consumption
370 W
Temperature Adjustment
Factory Set but Adjustable
Full Load Current
5 A
Number of Mounting Holes
18
Station Type
Bi-Level Fountain
Includes Water Filter
Yes
Includes Back Panel
No
Housing Finish
Plain
Number of Bubblers
2
Fountain Actuation
Sensor
Antimicrobial
No
Housing Color
Silver
Minimum Constant Stream Pressure
20 psi
Maximum Cold Water Temperature
50 Degrees F
Operating Voltage
115V AC
Refrigeration
Refrigerated
Compressor Horsepower
1/5 hp
Includes Pet Bowl
No
Cooling Capacity
8 gph @ 50 Degrees F
Refrigerant Type
R134A
Power Source
Electric Corded
Bi-Level Field Adjustable
Yes
Maximum Constant Stream Pressure
105 psi
Environment
Indoor

Description

The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
