  5. On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 20 7/16 in H, 18 1/4 in W

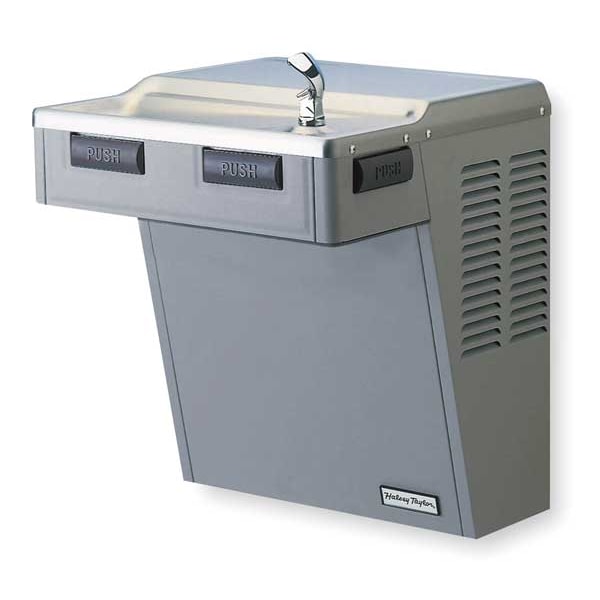

Halsey Taylor On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 20 7/16 in H, 18 1/4 in W HAC8PV-NF - main

On-Wall Single Drinking Fountain, 1 Level, 18 5/8 in D, 20 7/16 in H, 18 1/4 in W

  • Mfr # HAC8PV-NF

  • Zoro # G1385833

product price:  $919.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HAC8PV-NF
Zoro #
G1385833
UPC #
094902100173
Country of Origin
United States

Dimensions

Depth
18 5/8 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
20 7/16 in
Width
18 1/4 in
Mounting Hole Diameter
7/16 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
20 1/4 in
Overall Height
26 3/8 in
Drain Outside Diameter
1 1/4 in
Inlet Tube Outside Diameter
1/4 in
Overall Width
20 3/8 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Single Drinking Fountain
Refrigerated / Non-Refrigerated
Refrigerated
Cold Water Capacity
8 gph
Standards
ADA and ICC A117, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF 6, UL 399
Inlet
3/8 in OD
Dispenser Operation
Front and Side Pushbar
Regulator
In-line Flow, Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Dispenser Design
Wall
Vandal Resistant
No
Water Temp.
50 Degrees F
Drain Connection
1 1/4 in
Number of Bubblers
1
Includes Pet Bowl
No
Compressor Horsepower
1/5 hp
Minimum Supply Line Pressure
20 psi
Number of Mounting Holes
5
Includes Back Panel
No
Antimicrobial
No
Station Type
Single Fountain
Maximum Cold Water Temperature
50 Degrees F
Refrigeration
Refrigerated
Housing Finish
Platinum Vinyl
Minimum Constant Stream Pressure
20 psi
Refrigerant Type
R134A
Fountain Actuation
Front Pushbar/Side Pushbar
Cooling Capacity
8 gph @ 50 Degrees F
Temperature Adjustment
Factory Set but Adjustable
Environment
Indoor
Operating Voltage
115V AC
Power Consumption
370 W
Bi-Level Field Adjustable
No
Maximum Constant Stream Pressure
105 psi
Housing Color
Silver
Power Source
Electric Corded
Features
Provides Chilled Water, Double Bubbler Projects Two Separate Streams That Converge to Form a Fuller, More Satisfying Drink, Hermetically Sealed Refrigeration System, Mechanical Bubbler Push Bars Continue to Provide Water When Electrical Service is Interrupted, Provides Refreshing, Stainless Steel Finish is Corrosion Resistant
Full Load Current
4.5 A
Includes Water Filter
No

Description

Drinking Fountain, Station Type Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Not Applicable, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Platinum Vinyl, Overall Height 26 5/16 in, Overall Depth 20 3/16 in, Overall Width 20 3/8 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Not Bi-Level Field Adjustable
