  5. On-Wall Two-Level Drinking Fountain, 2 Level, 36 1/4 in D, 27 in H, 18 5/8 in W

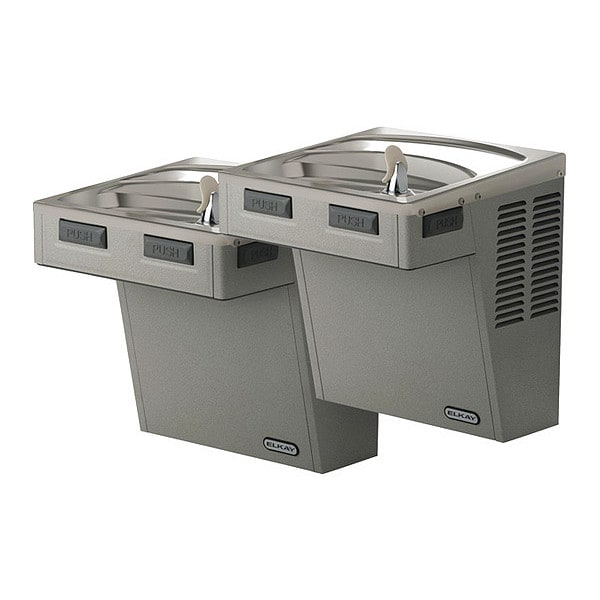

Elkay On-Wall Two-Level Drinking Fountain, 2 Level, 36 1/4 in D, 27 in H, 18 5/8 in W EMABFTLR8LC - main

On-Wall Two-Level Drinking Fountain, 2 Level, 36 1/4 in D, 27 in H, 18 5/8 in W

  • Mfr # EMABFTLR8LC

  • Zoro # G0047671

product price:  $1,301.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EMABFTLR8LC
Zoro #
G0047671
UPC #
094902407623
Country of Origin
United States

Dimensions

Height
27 in
Size
1/4"
Width
18 5/8 in
Manufacturers Warranty Length
5 yr Limited
Depth
36 1/4 in
Overall Height
27 in
Overall Width
36 1/4 in
Drain Outside Diameter
1 1/2 in
Overall Depth
18 5/8 in
Mounting Hole Diameter
7/16 in
Inlet Tube Outside Diameter
1/4 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
120 V AC
Material
ABS, Stainless Steel
Color
Gray
Refrigerant
R134A
Full Load Amps
4 A
Operation
Push Bar Fountain
Item
Two-Level Drinking Fountain
Dispensing Temp.
Cold
Regulator
20 to 105 psi
Vandal Resistant
No
Drain Connection
1 1/2 in
Dispenser Operation
Front and Side Pushbar
For Use With
EZ/LZ Series Bottle Filler
Cold Water Capacity
8 gph
Inlet
3/8 in OD
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Fits Brand
Elkay
Dispenser Design
Wall
Sub-Category
Filters and Cartridges
Refrigerated / Non-Refrigerated
Refrigerated
Features
Mechanical Bubbler Push Bars, Provides Chilled Water
Full Load Current
5 A
Operating Voltage
115V AC
Number of Bubblers
1
Minimum Supply Line Pressure
20 psi
Temperature Adjustment
Factory Set but Adjustable
Refrigeration
Refrigerated
Maximum Constant Stream Pressure
105 psi
Refrigerant Type
R134A
Product Weight
94 lb
Antimicrobial
No
Includes Pet Bowl
No
Includes Back Panel
No
Power Source
Electric Corded
Fountain Actuation
Front Pushbar/Side Pushbar
Includes Water Filter
No
Station Type
Bi-Level Fountain
Environment
Indoor
Housing Color
Gray
Minimum Constant Stream Pressure
20 psi
Housing Finish
Vinyl Clad
Power Consumption
370 W
Cooling Capacity
8 gph @ 50 Degrees F
Number of Mounting Holes
6
Maximum Cold Water Temperature
50 Degrees F
Bi-Level Field Adjustable
Yes

Description

Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation.
