Shop ELKAY

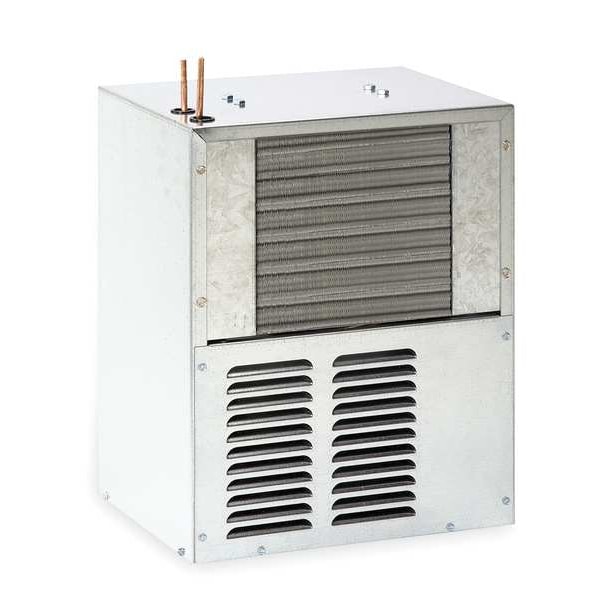

Remote Chiller Non-Filtered Refrigerated 8 GPH

  • Mfr # ECH8

  • Zoro # G2668075

product price:
$
1,014.99
/ea
Free Shipping & Returns

Key Features

Cold Water Capacity
8.0 gph
Dispenser Tank Size
0.4 gal
Compressor HP - Dispensers
1/5 hp
Full Load Amps - Dispensers
5.0 A
Water Connection - Dispensers
1/4 in OD Tubing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ECH8
Zoro #
G2668075
UPC #
094902358239
Country of Origin
United States

Dimensions

Dispenser Tank Size
0.4 gal
Depth
10 1/4 in
Width
13 1/4 in
Height
17 3/8 in
Overall Height
17 3/8 in
Overall Width
13 1/4 in
Overall Depth
10 1/4 in
Manufacturer Warranty Length
1 yr Electrical Components and Water System, 5 yr Refrigeration System
Outlet Tube Outside Diameter
1/4 in
Inlet Tube Outside Diameter
1/4 in

Details

Cold Water Capacity
8.0 gph
Compressor HP - Dispensers
1/5 hp
Full Load Amps - Dispensers
5.0 A
Water Connection - Dispensers
1/4 in OD Tubing
Refrigerant
R134A (CFC Free)
Reserve Gallons
0.40
GPH
8.0
Full Load Amps
5.0 A
Item
Water Chiller
Material
Galvanized steel
Voltage
115
Dispenser Voltage
120V AC
Compressor
1/5 HP
Compliance
Buy American Act, CAN/CSA C22.2 120, NSF 372 (Lead Free), NSF 61, UL 399
Connection
1/4" O.D. Tubing
Features
Flexible Installation Location of Refrigeration, Up to 15 ft from Dispensing Location, Converts Any Drinking Fountain into a Water Cooler, Fully Enclosed, Hermetically Sealed Refrigeration System, Ideal for Permanently Wired Applications, Provides Cool Water for Most Two Station Applications
Standards
Buy American Act, CAN/CSA C22.2 No. 120, NSF 372 (Lead Free), NSF 61, UL 399
Power Consumption
370 W
Temperature Adjustment
Adjustable
Full Load Current
5 A
Environment
Indoor
Product Weight
43 lb
Refrigerant Type
R134A
Ventilation Clearance
Cavity or Behind A Wall: 4 in Each Side, 4 in Above and Below, Open Area: 4 in Each Side
Housing Finish
Galvanized
Cooling Capacity
8 gph @ 50 Degrees F
Includes Water Filter
Water Filter Not Included
Maximum Supply Line Pressure
105 psi
Recommended Install Distance
Maximum 15 ft
For Number of Stations
2
Operating Voltage
115V AC
Maximum Flow Rate
8 gph
Housing Material
Steel
Minimum Supply Line Pressure
40 psi
For Station Type
Drinking Fountains
Compressor Horsepower
1/4 hp
Ventilation Clearance - Front
4 in
Accessory Type
Water Chiller
Recommended Install Distance - Maximum
15 ft
Ventilation Clearance - Side
4 in
Ventilation Clearance - Top
4 in
Ventilation Clearance - Rear
4 in

Description

Remote water chillers convert standard drinking fountains into a water cooler.
