Shop ELMO RIETSCHLE

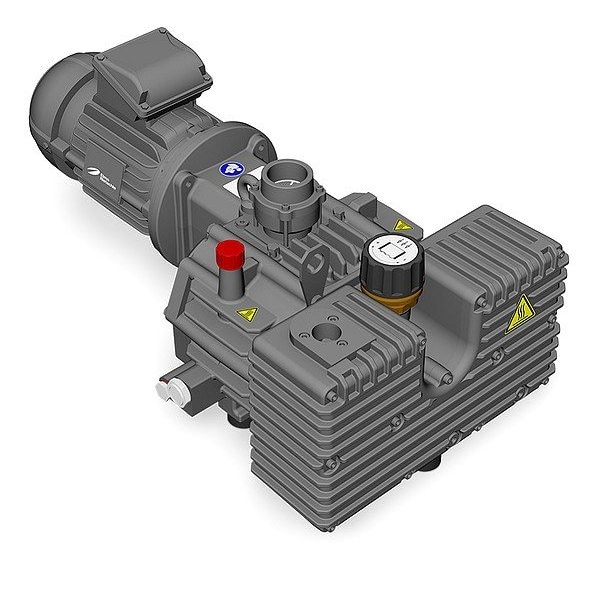

Vacuum Pump, 3 kW, 16.5" W, 18 in Hg

  • Mfr # 1028980100-4H

  • Zoro # G505302101

product price:
$
11,270.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Voltage
-/ 460 V +/-10% (60 Hz), 230 / 400 V +/-10% (50 Hz)
Phase
Three
Weight
212 lb
Overall Length
27.8 in
Motor Type
Continuous-Duty TEFC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1028980100-4H
Zoro #
G505302101
UPC #
-
Country of Origin
Germany
Item
Vacuum Pump
Voltage
-/ 460 V +/-10% (60 Hz), 230 / 400 V +/-10% (50 Hz)
Phase
Three
Weight
212 lb
Motor Type
Continuous-Duty TEFC
Standards
UR
Compressor Type
Claw
Includes Motor
Yes
Maximum Vacuum
18 in Hg
Frequency
50 Hz, 60 Hz
Maximum Operating Temperature
104 Degrees F
Exhaust Location
Rear
Lubrication Type
Splash Lubricated; Synthetic Oil
Free Air Flow Rate
84.2 cfm
Inlet Type
BSPP
Sound Level
63 dBA
Minimum Operating Temperature
41 Degrees F
Maximum Speed
3,475 RPM
Series
Series C
Output Power
3 kW
Life Expectancy
10 yr
Inlet Gender
Female
Duty Cycle
Continuous
Enclosure Type
TEFC
Enclosure Rating
IP55
Mounting Style
Thru-Bolt
Impeller Material
Cast Iron
Current Rating
10 (230V) / 5.76 (400V) / 5.01 (460V)
Housing Material
Cast Iron

Description

Vacuum Pump, Output Power 3 kW, Phase Three, Voltage -/ 460 V +/-10 Percent (60 Hz), 230 / 400 V +/-10 Percent (50 Hz), Maximum Vacuum 18 in Hg, Inlet Size 1 1/2 in, Inlet Type BSPP, Inlet Gender Female
