Shop ELMO RIETSCHLE

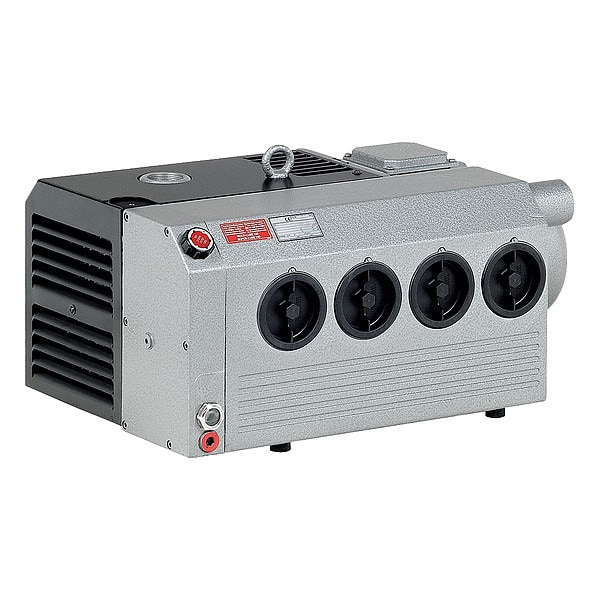

Vacuum Pump, 5 hp, 200V AC, Slide, 30.9" L

  • Mfr # 1029260400-5H2

  • Zoro # G011420238

product price:
$
11,240.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Voltage
200V AC
Phase
Three
Weight
213.8 lb
Overall Length
30.9 in
Valve Type
Ballast, Vacuum Non-Return
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1029260400-5H2
Zoro #
G011420238
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
30.9 in
Overall Height
12.83 in
Overall Width
15.9 in
Outlet Size
2 in
Inlet Size
1 1/2 in
Wire Rope Length
30.9 in
Length
30.9 in

Details

Item
Vacuum Pump
Voltage
200V AC
Phase
Three
Weight
213.8 lb
Valve Type
Ballast, Vacuum Non-Return
Application
Drying, Hold-Down, Packaging, Pick & Place, Pneumatic Conveying
Oil Capacity
3 L
Includes
Fine Mesh Filter, Gas Ballast Valve, Oil Separator, Oil/Air Heat Exchanger, Protective Cover, Vacuum Non-Return Valve on Suction Side
Finish
Grey Paint
Series
V-VCS
Sound Level
67 dBA
Outlet Gender
Female
Enclosure Type
TEFC
Maximum Operating Pressure
500 mbar
Thermal Protection
None
Submersible
No
Rotor Material
Carbon Steel
Maximum Vacuum
0.5 mbar
Magnetic Drive
No
Maximum Flow Rate
212 cfm
Frequency
50 Hz, 60 Hz
Output Power
5 hp
Bearing Type
Slide
Minimum Operating Temperature
53.6 Degrees F
Filter Type
Fine Mesh
Maximum Operating Temperature
104 Degrees F
Pump Type
Rotary Vane Vacuum
Duty Cycle
Continuous
Inlet Gender
Female
Outlet Type
NPT
Runs Dry
Yes
Inlet Type
NPT
Standards
UL Listed
Maximum Discharge Pressure
29.91 in Hg
Vane Material
Composite

Description

Vacuum Pump, Output Power 5 hp, Phase Three, Voltage 200V AC, Maximum Flow Rate 212 cfm, Maximum Vacuum 0.5 mbar, Inlet Size 1 1/2 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 2 in, Outlet Type NPT, Outlet Gender Female, Application Drying, Hold-Down, Packaging, Pick & Place, Pneumatic Conveying, Maximum Discharge Pressure 29.91 in Hg, Maximum Operating Pressure 500 mbar
