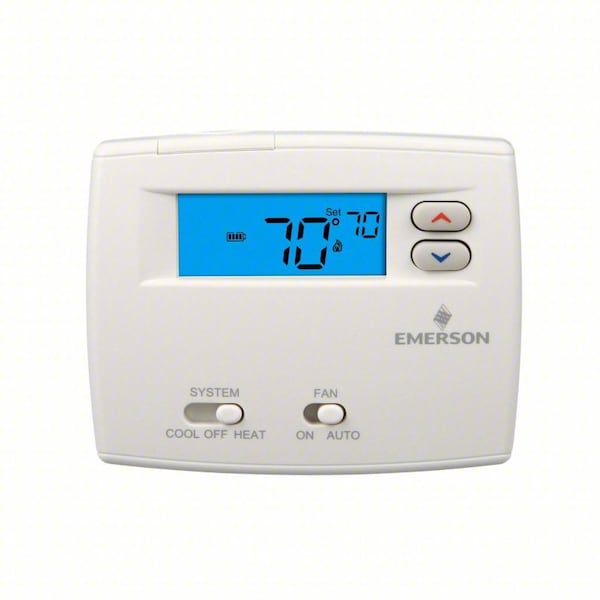

Emerson Blue Series 2 Thermostats, 1 H, 1 C, Hardwired/Battery, 24VAC 1F86EZ-0251 - main

Blue Series 2 Thermostats, 1 H, 1 C, Hardwired/Battery, 24VAC

  • Mfr # 1F86EZ-0251

  • Zoro # G4472115

product price: $59.99
/ea

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F86EZ-0251
Zoro #
G4472115
UPC #
786710542824
Country of Origin
Viet Nam

Dimensions

Height
3 3/4"
Width
4 3/4"
Depth
1 1/2 in
Overall Width
4 3/4 in
Digit Size
Easy Read
Overall Depth
1 1/2 in
Overall Height
3 3/4 in

Details

Item
Blue Series 2 Thermostats
Voltage
24VAC
Stages Heat
1
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Temporary Temperature Hold
No
Fan Switching
Auto-on
Key Pad Lockout
No
Filter Indicator
Yes
Features
Home, Sleep and Away Temperature Pre-Sets
Temporary Program Override
No
Automatic Changeover
No
Dehumidification Control
No
Humidification Control
No
Remote Sensing Capability
No
Batteries Included
Yes
Programmable Fan
No
Low Battery Indicator
Yes
Display
Digital
Includes
2 AA Batteries
Footnotes
3, 4
Battery Backup
Yes
Terminal Designations
R, C, Y, W, G, O/B
For Use With
Heat Only, Cool Only, Heating and Cooling, Heat Pump
Temperature Limiting
No
Display Type
Digital
Mounting
Horizontal
Stages
1H/1C Conventional, 1H Heat Pump
Type
Digital Nonprogrammable Single Stage H/C or HP
Control Type
Push Button
Housing Color
White
Filter Change Reminder
Yes
Temperature Control Range
45 Degrees to 99 Degrees F
Maximum Operating Temperature
150 Degrees F
Operating Humidity Range
0% to 90%
Number of Heating Stages - Heat Pump System
1
Minimum Control Temperature
45 Degrees F
Backlit Type
Key Press or Continuous with Common Wire
Includes Positive Off
Yes
Minimum Operating Temperature
-40 Degrees F
System/Fan Settings
Cool-Heat-Off/Auto-On
Temperature Sensitivity
+/-1 Degrees F
Frequency
50 Hz, 60 Hz
Changeover Type
Manual
Number of Cooling Stages - Heat Pump System
0
Number of Zones
1
Backlit Screen Color
Blue
Mounting Direction/Shape
Horizontal
Shape
Rectangle
Programming Capability
Not Programmable
Operating Temperature Range
-40 Degrees to 150 Degrees F
Temperature settings per day
3
Maximum Operating Humidity
90 %
Maximum Control Temperature
99 Degrees F
Temperature Scale
Fahrenheit/Celsius
Thermostat Type
Low Voltage
Number of Heating Stages - Conventional System
1
Electrical Connection Type
Hardwired
Mounting Direction
Horizontal
Fan Settings
Auto-On
Number of Cooling Stages - Conventional System
1
System Settings
Cool-Heat-Off
Temperature Differential
0.6 Degrees to 1.7 Degrees F
Minimum Operating Humidity
0 %
Amperage
2.5 A
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt
Housing Material
Plastic
Application
Heat or Cool
Millivolt Compatible
Yes
Differential Type
Adjustable
Battery Type
(2) AA Batteries

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt, Push Button, Dehumidification Control No, Differential Type Adjustable, Digit Size Easy Read, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 45 Degrees F, Maximum Control Temperature 99 Degrees F, Key Features Change Filter Reminders, Home-Sleep-Away Preset Buttons
