  6. Vertical Programmable Thermostats, 5-2 Programs, 1 H, 1 C, Hardwired/Battery, 20/30VAC

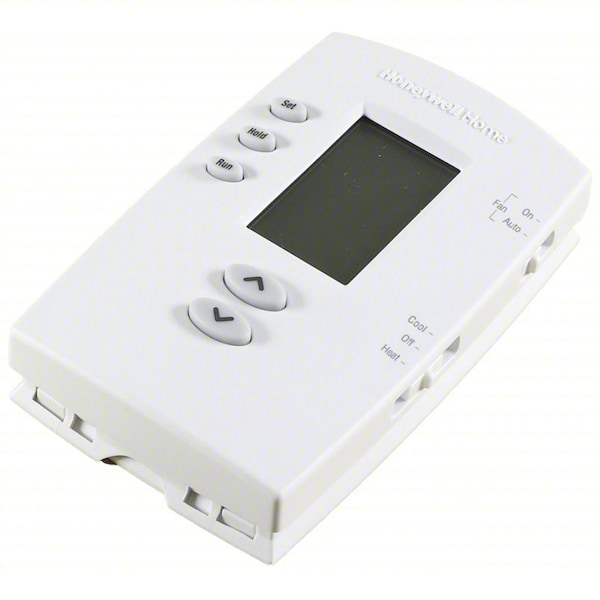

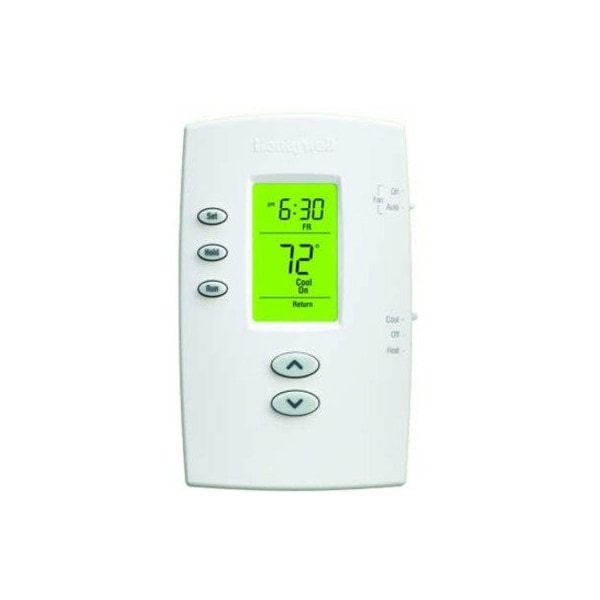

Honeywell Home Vertical Programmable Thermostats, 5-2 Programs, 1 H, 1 C, Hardwired/Battery, 20/30VAC TH2110DV1008/U - main

Vertical Programmable Thermostats, 5-2 Programs, 1 H, 1 C, Hardwired/Battery, 20/30VAC

  • Mfr # TH2110DV1008/U

  • Zoro # G2923943

product price:  $53.15
/ea

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Vertical
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TH2110DV1008/U
Zoro #
G2923943
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 11/16"
Width
2 7/8"
Depth
1 1/8 in
Overall Width
2 7/8 in
Overall Height
4 11/16 in
Screen Height
1 3/4 in
Overall Depth
1 1/8 in
Digit Size
Easy Read
Screen Width
1 3/4 in

Details

Item
Vertical Programmable Thermostats
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Vertical
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
5-2
Fan Switching
Auto-on
Temp. Settings per Day
4
Includes
2 AA Batteries
Key Pad Lockout
No
For Use With
Conventional or Heat Pumps
Footnotes
3, 4
Features
Side Switches
WiFi Capability
No
Batteries Included
Yes
Low Battery Indicator
Yes
Humidification Control
No
Terminal Designations
B, C, G, O, R, RC, W, Y
Battery Backup
Yes
Display Type
Digital
Remote Sensing Capability
No
Programmable Fan
No
Temporary Program Override
Yes
Dehumidification Control
No
Mounting
Vertical
Type
Digital Programmable Single Stage H/C or HP
Control Type
Push Button, Slide Switch
Stages
1H/1C Conventional, 1H/1C Heat Pump
Application
Heat and Cool
Includes Batteries
Yes
Temperature Control Range
40 Degrees to 99 Degrees F
Number of Heating Stages - Conventional System
1
Temperature Readout
Yes
Number of Cooling Stages - Heat Pump System
1
Backlit Screen
Yes
Mounting Direction/Shape
Vertical
Electrical Connection Type
Hardwired
Number of Zones
1
Battery Type
(2) AA Batteries
Maximum Operating Humidity
90 %
Minimum Operating Temperature
32 Degrees F
Millivolt Compatible
Yes
Changeover Type
Manual
Application/Stages
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump
Maximum Control Temperature
99 Degrees F
Temperature settings per day
4
Fan Settings
Auto-On
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems, Millivolt
Wireless
No
Mounting Direction
Vertical
Includes Positive Off
Yes
Programming Capability
5-2
System Settings
Cool-Heat-Off
Sensor Location
Built-In
System/Fan Settings
Cool-Heat-Off/Auto-On
Minimum Operating Humidity
5 %
Frequency
50 Hz, 60 Hz
Number of Cooling Stages - Conventional System
1
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Temperature
120 Degrees F
Number of Heating Stages - Heat Pump System
1
Housing Color
White
Shape
Rectangle
Minimum Control Temperature
40 Degrees F
Operating Temperature Range
32 Degrees to 120 Degrees F
Operating Humidity Range
5% to 90% RH
Temperature Differential
1 Degrees F
Contact Rating
20/30V AC
Thermostat Type
Low Voltage

Description

Low Voltage Thermostat, Stages Heat 1, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 5-2, Terminal Designations B, C, G, O, R, RC, W, Y, WiFi Capability No, System Switching Heat-Cool-Off, Fan Switching Auto-On, Display Type Digital, Key Pad Lockout No, Programmable Fan No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes, Battery Backup Yes, Low Battery Indicator Yes, Batteries Included Yes
