Shop EMUGE

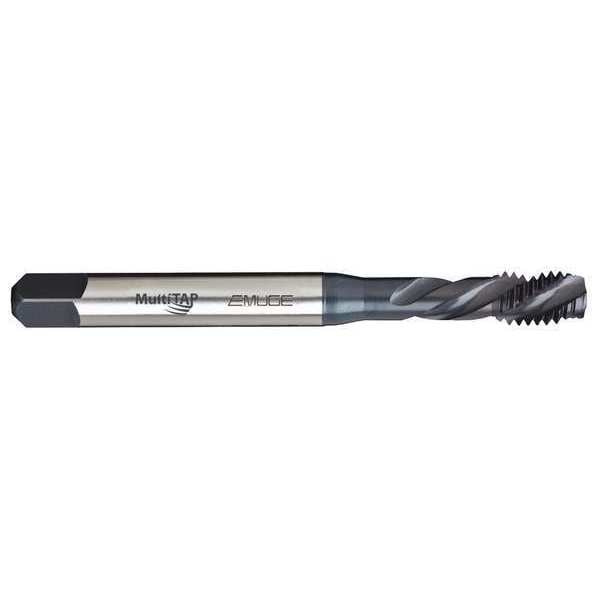

Spiral Flute Tap, Semi-Bottoming, 3

  • Mfr # CU5332005047

  • Zoro # G7615991

product price:
$
44.99
/ea

Key Features

Overall Length
4-11/32"
Tap Style
Spiral Flute
Shank Dia.
0.367"
Tap Chamfer
Semi-Bottoming
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CU5332005047
Zoro #
G7615991
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
4-11/32"
Shank Dia.
0.367"
Tap Dimension Type
Inch
Tap Size
1/2"
Thread Length
2-1/2"
Tap Thread Size
1/2"-20
Thread Size
1/2"-20
Size
1/2
Pitch Diameter Limit
Not Rated
Wire Rope Length
4 11/32 in
Shank Diameter
23/64 in
Length
4 11/32 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Semi-Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Finish
NE2
Standards
ANSI, DIN
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Thread Type
UNF
Cutting Direction - Machining
Right Hand
Thread Standard
UNF
Measurement System
Fractional Inch
Number of Pieces
1

Description

Tap, Thread Size 1/2 In.-20, UNF, Overall Length 4 11/32 in, High Speed Steel, NE2, Thread Length 2 1/2 in, Thread Direction Right Hand, Number of Flutes 3
