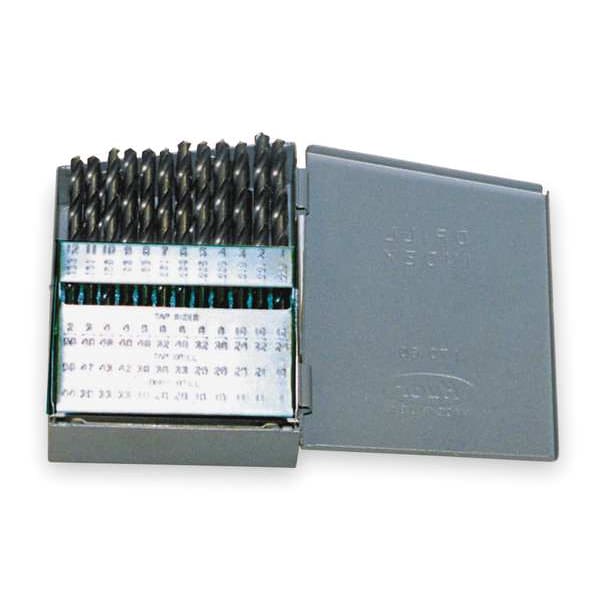

Name: 60PC 118 Deg General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS No 1-No 60
Brand: Chicago-Latrobe
SKU: G3186845
Price: 123.99 USD
Availability: InStock

Details

MFR #: 57716
Zoro #: G3186845
UPC #: 662355577165
Country of Origin: United States
Item: Jobber Length Drill Bit Set
Number of Pieces: 60
Cutting Direction: Right Hand
Drill Bit Point Angle: 118 Degrees
Drill Bit Material: High Speed Steel
Includes: Metal Drill Index
Drill Bit Grouping: Drill Bit Set
Point Type: Conventional Point
List Number: 150
Standards: ASME B94.11M-1993
Left/Right Hand: Right
Shank Type: Straight
Drill Style: Jobber Drill
Measurement System: Wire
Flute Type: Spiral
Finish - Machining: Black Oxide
Shank Type - Machining: Straight
Coolant Fed: Non-Coolant Through
Aircraft Drill: No
Number of Drill Bits: 60
Primary Material Application: Cast Iron, Steel
Material - Machining: High Speed Steel
Material Grade - Machining: General Purpose
Drill Bit Point Type: Conventional Point
Drill Bit Case Type: Metal Index
Number of Flutes: 2
Spiral Direction: Right Hand
Primary Material Application ISO Code: K, P
Helix Angle - Minimum: 21 Degrees
Helix Angle - Maximum: 34 Degrees

Description

The CHICAGO-LATROBE 57716 is a jobber-length drill bit set that includes 60 high speed steel drill bits for general-purpose drilling applications. The set includes drill sizes from #60 to #1 and is specified for right-hand cutting direction. The bits feature a conventional point and 2-flute spiral design and are specified for drilling cast iron and steel (ISO codes K and P). The set includes a metal index case for organization and complies with ASME B94.11M-1993 standards. This set is specified for drilling applications using wire gauge sizes (#60 to #1) and straight shanks.

Key Features:

Drill bit count: 60 pieces covering size range #60 to #1
Material: High speed steel, general purpose grade
Drill length: Jobber length, ranging approximately 1 5/8 in to 3 7/8 in overall length
Shank type: Straight, 1/25 in diameter
Point type: Conventional with 118° point angle
Flutes: 2, spiral direction right hand with helix angle between 21° and 34°
Primary material applications: Cast iron and steel (ISO codes K and P)
Includes a metal drill index case for bit storage and organization

Dimensions

Drill Bit Dimension Type: Wire
Sizes Included: #60-#1
Drill Bit Size: #60 to #1
Depth:Dia. Ratio: 4xD
Depth x Dia. Ratio: 4xD
Shank Dia.: 1/25 in
Size Range: #1-#60
Largest Drill Bit Size: #1
Drill Length Class: Jobber-Length
Drill Bit Sizes Included: #1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
Smallest Drill Bit Size: #60
Overall Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
Wire Rope Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
