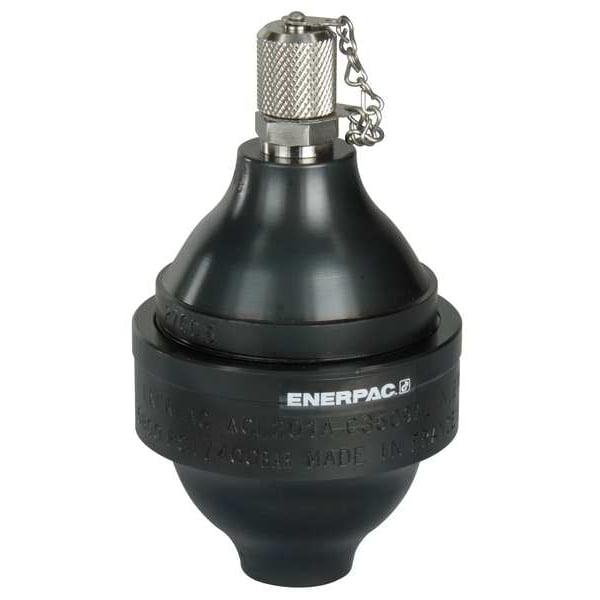

ACL201A, Pre-charged Accumulator, 7.70 in3 Maximum Rated Oil Volume
Mfr # ACL201A
Zoro # G1090792
product price:Â
$
753.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Pre-Charged
Yes
Fluid Volume
7.7 cu in
Gas Volume
10.37 cu.-in.
Max. Pressure
5,000 psi
Construction
Diaphragm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ACL201A
- Zoro #
- G1090792
- UPC #
- 662005132690
- Country of Origin
- France
Dimensions
- Height (In.)
- 5.39
- Dia. (In.)
- 3.33
- Diameter
- 3.33 in
- Overall Height
- 5.39 in
- Vent Diameter
- 10.37 cu in
- Hydraulic Fluid Port Dash Size
- -4
- Inlet Port Thread Size
- SAE #6
Details
- Pre-Charged
- Yes
- Fluid Volume
- 7.7 cu in
- Gas Volume
- 10.37 cu.-in.
- Max. Pressure
- 5,000 psi
- Construction
- Diaphragm
- Usable Oil Capacity
- 4.51 cu in @ 5000 psi
- Pre-Charged Nitrogen Pressure
- 1,450 psi
- Mounting
- Vertical
- Maximum Pressure
- 5000 psi
- Inlet SAE (In.)
- #4 Female
- Temp. Range
- 32 to 180 F
- Item
- Diaphragm Accumulator
- Gas Volume (Cu.-In.)
- 10.37
- Mounting Orientation - Accumulators
- Vertical
- Operating Temp. Range
- 32 to 180 Degrees F
Description
Diaphragm Accumulator, Fluid Volume 7.7 cu in, Vent Diameter 10.37 cu in, Max. Pressure 5,000 psi, Diameter 3.33 in, Overall Height 5.39 in, Inlet Port Thread Size SAE #6, Hydraulic Fluid Port Dash Size -4, Pre-Charged Yes, Pre-Charged Nitrogen Pressure 1,450 psi, Usable Oil Capacity 4.51 cu in @ 5000 psi, Operating Temp. Range 32 to 180 Degrees F
Restrictions
Hazardous material
