Shop ENERPAC

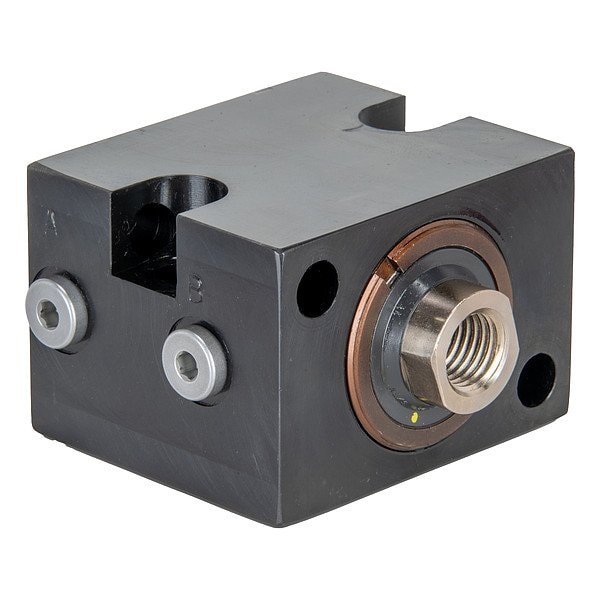

Block hydraulic cylinder

  • Mfr # CDB40252
  • Zoro # G215488973
product price:
$
538.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Retracted Height
3.15 in
Single Acting/Double Acting
Double Acting
Extended Height
4.13 in
Body Material
Steel
Effective Area
0.98 sq in (Retract); 1.95 sq in (Advance)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CDB40252
Zoro #
G215488973
UPC #
0662005104444
Country of Origin
United States

Dimensions

Retracted Height
3.15 in
Extended Height
4.13 in
Plunger Dia.
0.37 in
Center Hole Dia.
16 mm
Stroke Length
49/50 in
Plunger Thread Size
M16x2

Details

Single Acting/Double Acting
Double Acting
Item
Block Hydraulic Cylinder
Body Material
Steel
Effective Area
0.98 sq in (Retract); 1.95 sq in (Advance)
Cylinder Type
Block Hydraulic Cylinder
Max. Pressure
5,000 psi
Oil Capacity
0.96 cu in
Operating Pressure
5,000 psi
Nominal Capacity
9,750 lbf
Cylinder Orientation
Horizontal, Vertical
Capacity @ Operating Pressure
9,750 lbf

Description

Block Hydraulic Cylinder, Double Acting, Block Hydraulic Cylinder, Steel, Nominal Capacity 9,750 lbf, Stroke Length 49/50 in, Effective Area 0.98 sq in (Retract); 1.95 sq in (Advance), Max. Pressure 5,000 psi, Oil Capacity 0.96 cu in, Retracted Height 3.15 in, Extended Height 4.13 in, Capacity @ Operating Pressure 9,750 lbf, Operating Pressure 5,000 psi, Plunger Dia. 0.37 in, Plunger Thread Size M16x2, Center Hole Dia. 16 mm
