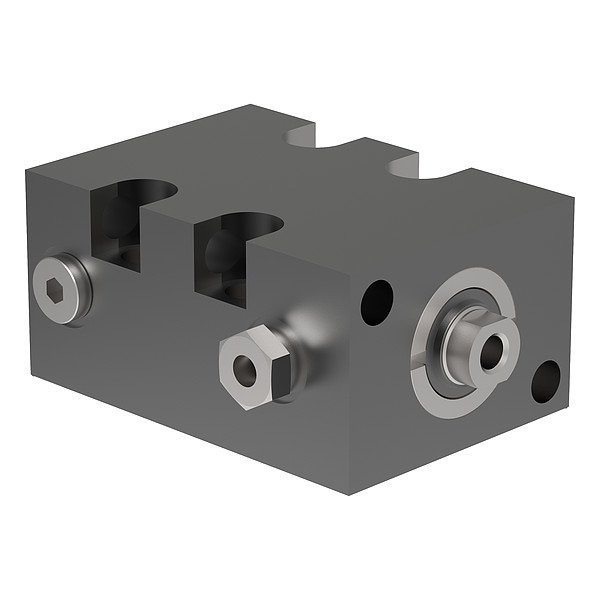

Block hydraulic cylinder
Mfr # CSB18252
Zoro # G715488947
product price: $683.99
/ea
Free Shipping & Returns
Key Features
Oil Capacity
0.75 cu in
Plunger Dia.
0.63 in
Cylinder Type
Block Hydraulic Cylinder
Stroke Length
49/50 in
Effective Area
0.76 sq in (Advance)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CSB18252
Zoro #
G715488947
UPC #
0662005104499
Country of Origin
United States
Dimensions
Plunger Dia.
0.63 in
Stroke Length
49/50 in
Extended Height
4.92 in
Center Hole Dia.
8 mm
Plunger Thread Size
M8x1.25
Retracted Height
3.94 in
Details
Oil Capacity
0.75 cu in
Cylinder Type
Block Hydraulic Cylinder
Item
Block Hydraulic Cylinder
Effective Area
0.76 sq in (Advance)
Single Acting/Double Acting
Single Acting
Max. Pressure
5,000 psi
Body Material
Steel
Capacity @ Operating Pressure
3,800 lbf
Cylinder Orientation
Horizontal, Vertical
Operating Pressure
5,000 psi
Nominal Capacity
3,800 lbf
Description
Block Hydraulic Cylinder, Single Acting, Block Hydraulic Cylinder, Steel, Nominal Capacity 3,800 lbf, Stroke Length 49/50 in, Effective Area 0.76 sq in (Advance), Max. Pressure 5,000 psi, Oil Capacity 0.75 cu in, Retracted Height 3.94 in, Extended Height 4.92 in, Capacity @ Operating Pressure 3,800 lbf, Operating Pressure 5,000 psi, Plunger Dia. 0.63 in, Plunger Thread Size M8x1.25, Center Hole Dia. 8 mm
