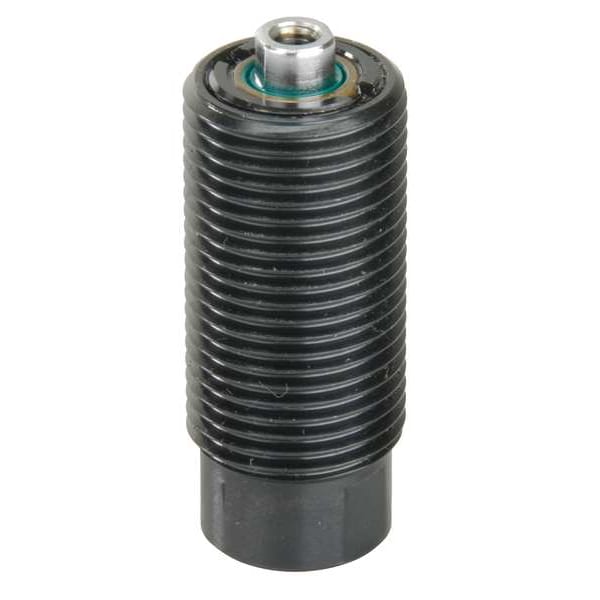

CST471, 980 lbs Capacity, 0.27 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
Mfr # CST471
Zoro # G1037732
product price:Â $158.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Push Capacity @ 5000 psi
980 lbf
Stroke Length
1/4 in
Retracted Height
1.87 in
Body Thread
3/4"-16
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
CST471
Zoro #
G1037732
UPC #
662005347834
Country of Origin
United States
Dimensions
Stroke Length
1/4 in
Retracted Height
1.87 in
Outside Dia.
0.75 in
Extended Height
2.15 in
Plunger Thread Size
#8-32
Details
Single Acting/Double Acting
Single Acting
Push Capacity @ 5000 psi
980 lbf
Body Thread
3/4"-16
Pressure Range
580 to 5000 psi
Capacity @ 5000 PSI
980 lb.
Type
Threaded Body
Effective Area Push
0.20 sq. in.
Stroke
0.28"
Item
Threaded Body Hydraulic Cylinder
Oil Capacity Push
0.05 cu in
Material of Construction
Steel
Seal Material
Polyurethane/Buna N
Function
Single Acting
Plunger Thread
#8-32 UN
Cylinder Type
Threaded Body
Body Material
Steel
Effective Push Area
0.20 sq in
Mounting Style
Threaded Body
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 980 lbf, Stroke Length 1/4 in, Effective Push Area 0.20 sq in, Oil Capacity Push 0.05 cu in, Pressure Range 580 to 5000 psi, Extended Height 2.15 in, Retracted Height 1.87 in, Body Thread 3/4 In.-16, Plunger Thread Size #8-32, Outside Dia. 0.75 in, Seal Material Polyurethane/Buna N
