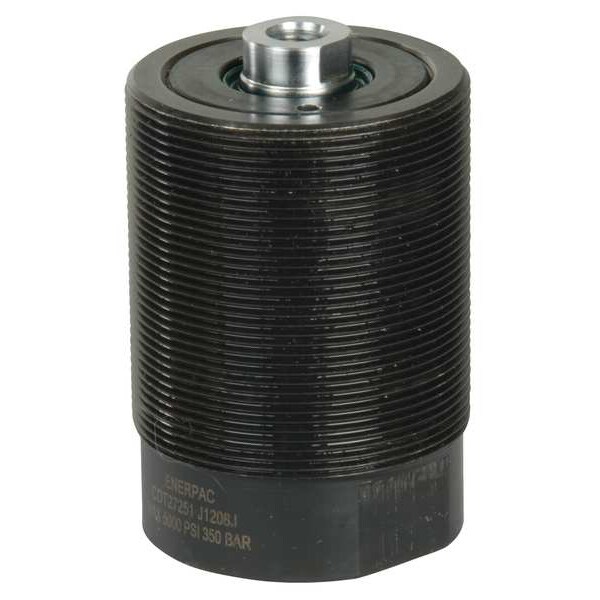

Cylinder, Threaded, 6110 lbs, .59 In Stroke
Mfr # CDT27151
Zoro # G1756693
product price:Â
$
405.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Single Acting/Double Acting
Double Acting
Push Capacity @ 5000 psi
6,110 lbf
Stroke Length
1/2 in
Retracted Height
2.8 in
Body Thread
2-1/8"-16
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CDT27151
- Zoro #
- G1756693
- UPC #
- 662005125586
- Country of Origin
- United States
- Single Acting/Double Acting
- Double Acting
- Push Capacity @ 5000 psi
- 6,110 lbf
- Body Thread
- 2-1/8"-16
- Pressure Range
- 580 to 5000 psi
- Type
- Threaded Body
- Oil Capacity Pull
- 0.48 cu in
- Seal Material
- Polyurethane/Buna N
- Effective Area Push
- 1.22 sq. in.
- Item
- Threaded Body Hydraulic Cylinder
- Effective Area Pull
- 0.82 sq. in.
- Plunger Thread
- 3/8"-16 UN
- Oil Capacity Push
- 0.72 cu in
- Function
- Double Acting
- Stroke
- 0.59"
- Material of Construction
- Steel
- Capacity @ 5000 PSI
- 6110 lb.
- Effective Push Area
- 1.22 sq in
- Cylinder Type
- Threaded Body
- Mounting Style
- Threaded Body
- Effective Pull Area
- 0.82 sq in
- Body Material
- Steel
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Push Capacity @ 5000 psi 6,110 lbf, Stroke Length 1/2 in, Effective Push Area 1.22 sq in, Effective Pull Area 0.82 sq in, Oil Capacity Push 0.72 cu in, Oil Capacity Pull 0.48 cu in, Pressure Range 580 to 5000 psi, Extended Height 3.39 in, Retracted Height 2.8 in, Body Thread 2-1/8 In.-16, Plunger Thread Size 3/8 In.-16, Outside Dia. 2.5 in, Seal Material Polyurethane/Buna N
