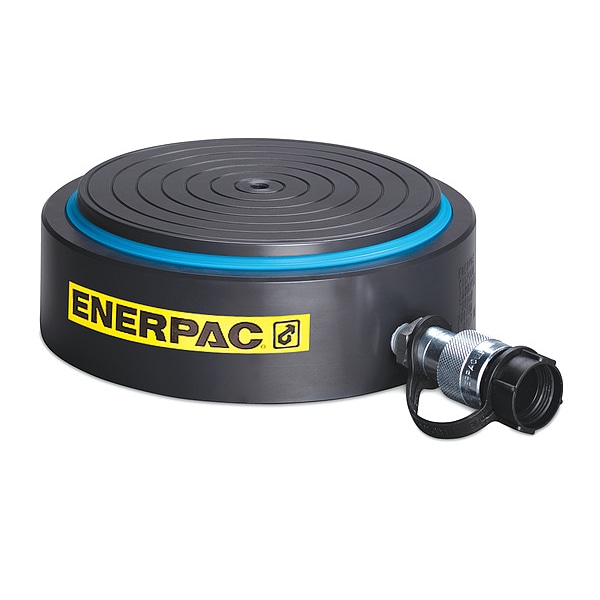

CUSP200, 235.0 ton Capacity, 0.59 in Stroke, High Tonnage Ultra Flat Hydraulic Cylinder
Mfr # CUSP200
Zoro # G5518817
product price: $4,492.99
/ea
Free Shipping & Returns
Key Features
Finish
Nitride
Nominal Capacity
200 ton
Effective Push Area
46.28 sq in
Effective Area
46.28 sq in
Nominal Stroke Length
9/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CUSP200
Zoro #
G5518817
UPC #
662005396030
Country of Origin
Spain
Dimensions
Nominal Stroke Length
9/16 in
Stroke Length
19/32 in
Retracted Height
2.72 in
Outside Dia.
9.02 in
Bore Dia.
7.68 in
Extended Height
3.3 in
Details
Finish
Nitride
Nominal Capacity
200 ton
Effective Push Area
46.28 sq in
Effective Area
46.28 sq in
Max. Pressure
10,150 psi
Item
Hydraulic Ram
Body Material
Steel
Weight Capacity
200 tons
Single Acting/Double Acting
Single Acting
Oil Capacity Push
27.15 cu in
Cylinder Type
Low Profile
Oil Capacity
446 cu. cm.
Series
CUSP
Weight
47.4 lb
Description
Hydraulic Ram, Single Acting, Low Profile, Steel, Nominal Capacity 200 ton, Stroke Length 19/32 in, Nominal Stroke Length 9/16 in, Effective Push Area 46.28 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 27.15 cu in, Retracted Height 2.72 in, Extended Height 3.3 in, Outside Dia. 9.02 in, Weight 47.4 lb, Series CUSP, Bore Dia. 7.68 in
