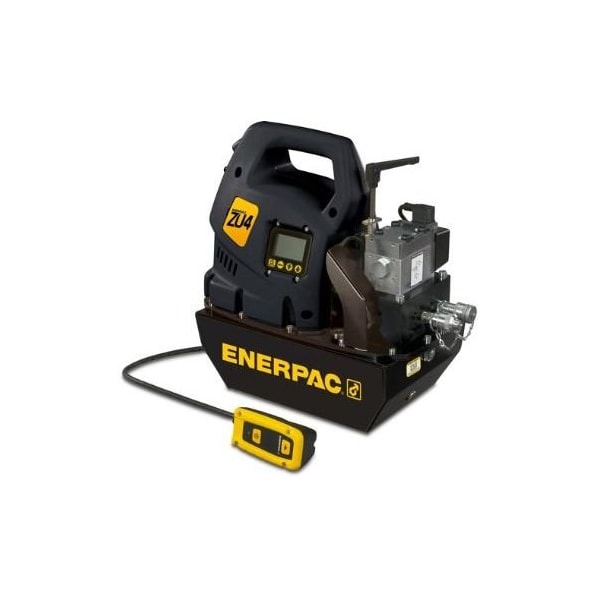

Electric Hydraulic Pump, 208/240V AC
Mfr # ZU4208TI-Q
Zoro # G222937778
product price:Â
$
12,883.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Reservoir Material
Steel
Flow Rate - Maximum
60 cu in/min
Control Valve Pressure Relief - Minimum
2,000 psi
Operating Pressure - Maximum
10,000 psi
Overall Width
12.5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZU4208TI-Q
- Zoro #
- G222937778
- UPC #
- 662005179053
- Country of Origin
- United States
- Reservoir Material
- Steel
- Flow Rate - Maximum
- 60 cu in/min
- Control Valve Pressure Relief - Minimum
- 2,000 psi
- Operating Pressure - Maximum
- 10,000 psi
- Displacement @ 5000 psi
- 76 cu in/min
- Displacement @ 100 psi
- 700 cu in/min
- Horsepower - Maximum
- 1 7/10 hp
- Item
- Electric Powered Hydraulic Pump
- Phase
- Single
- Control Valve Type
- 2-Position, 4-Way
- Cylinder Compatibility
- Single Acting
- Reservoir Capacity
- 1.8 gal
- Displacement @ 10,000 PSI
- 60 cu in/min
- Displacement @ 700 psi
- 535 cu in/min
- Media Intake Connection Type
- SAE
- Frequency
- 50 Hz, 60 Hz
- Sound Level - Maximum
- 90 dBA
- Control Valve Function
- Advance, Retract
- Nameplate Voltage
- 208/240V AC
- Control Valve Pressure Relief - Maximum
- 10,000 psi
- Sound Level - Minimum
- 85 dBA
Description
Electric Powered Hydraulic Pump, Horsepower - Maximum 1 7/10 hp, Nameplate Voltage 208/240V AC, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 76 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 2-Position, 4-Way, Reservoir Capacity 1.8 gal, Reservoir Material Steel, Overall Height 20.5 in, Cylinder Compatibility Single Acting, Control Valve Function Advance, Retract, Control Valve Pressure Relief - Maximum 10,000 psi
