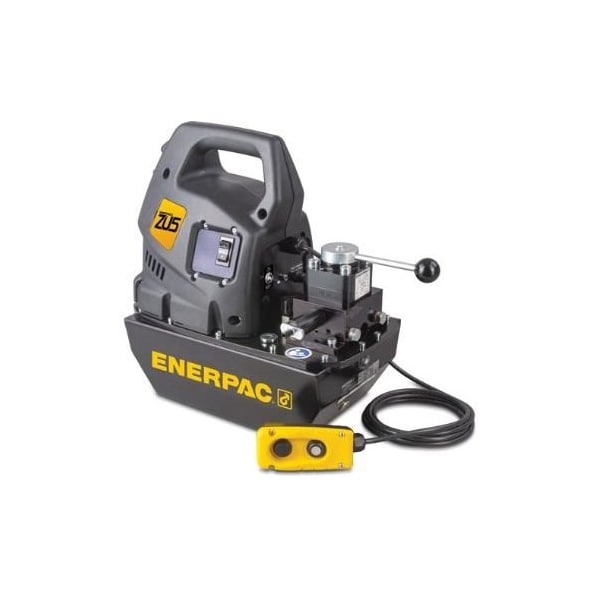

Electric Powered Hydraulic Pump, 115V AC
- Mfr # ZU5908PB-P
- Zoro # G322937241
product price:Â
$
10,455.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Flow Rate - Maximum
60 cu in/min
Includes
Pressure Switch
Reservoir Capacity
1.8 gal
Operating Pressure - Maximum
8,000 psi
Nameplate Voltage
115V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZU5908PB-P
- Zoro #
- G322937241
- UPC #
- 662005425105
- Country of Origin
- United States
- Flow Rate - Maximum
- 60 cu in/min
- Includes
- Pressure Switch
- Reservoir Capacity
- 1.8 gal
- Operating Pressure - Maximum
- 8,000 psi
- Nameplate Voltage
- 115V AC
- Duty Cycle
- Intermittent
- Cylinder Compatibility
- Double Acting
- Displacement @ 700 psi
- 535 cu in/min
- Displacement @ 10,000 PSI
- 60 cu in/min
- Horsepower - Maximum
- 1 7/10 hp
- Control Valve Function
- Advance, Hold, Retract
- Sound Level - Minimum
- 85 dBA
- Media Intake Connection Type
- SAE
- Sound Level - Maximum
- 90 dBA
- Control Valve Type
- 3-Position, 4-Way, Tandem Center
- Control Valve Pressure Relief - Minimum
- 1,000 psi
- Displacement @ 100 psi
- 550 cu in/min
- Displacement @ 5000 psi
- 76 cu in/min
- Item
- Electric Powered Hydraulic Pump
- Phase
- Single
- Frequency
- 50 Hz, 60 Hz
- Control Valve Pressure Relief - Maximum
- 8,000 psi
- Power Source
- Corded
Dimensions
- Media Intake Connection Size
- 7/8 in
- Overall Height
- 20.5 in
- Wire Rope Length
- 25 in
- Overall Width
- 12.5 in
- Overall Length
- 25 in
- Length
- 25 in
Description
Electric Powered Hydraulic Pump, Horsepower - Maximum 1 7/10 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Phase Single, Operating Pressure - Maximum 8,000 psi, Displacement @ 5000 psi 76 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 3-Position, 4-Way, Tandem Center, Reservoir Capacity 1.8 gal, Overall Height 20.5 in, Cylinder Compatibility Double Acting, Control Valve Function Advance, Hold, Retract, Control Valve Pressure Relief - Maximum 8,000 psi
