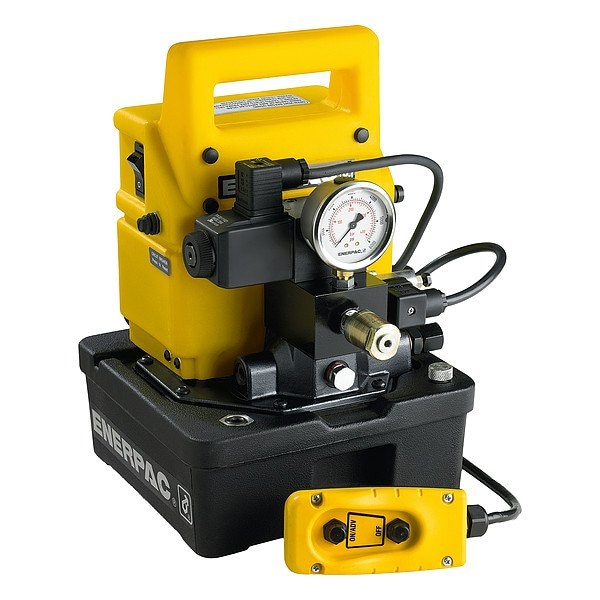

Electric Pump - Economy
Mfr # WUD1301B
Zoro # G612923749
product price: $6,131.99
/ea
Free Shipping & Returns
Key Features
Control Pendant Voltage
24VDC
Reservoir Material
Fiberglass Reinforced Polyamide
Operating Pressure - Maximum
5,000 psi
Cylinder Compatibility
Single Acting
Control Pendant Size
10 ft
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WUD1301B
Zoro #
G612923749
UPC #
0662005350759
Country of Origin
United States
Dimensions
Control Pendant Size
10 ft
Overall Length
14.5 in
Overall Height
14.7 in
Overall Width
12.2 in
Details
Item
Electric Pump
Control Pendant Voltage
24VDC
Reservoir Material
Fiberglass Reinforced Polyamide
Operating Pressure - Maximum
5,000 psi
Cylinder Compatibility
Single Acting
Control Valve Type
3-Position, 3-Way
Duty Cycle
Intermittent
Displacement @ 5000 psi
25 cu in/min
Phase
Single
Current
9.5 A
Sound Level - Maximum
85 dBA
Horsepower - Maximum
1/2 hp
Reservoir Capacity
231 cu in
Flow Rate - Maximum
25 cu in/min
Nameplate Voltage
115V
Frequency
50 Hz, 60 Hz
Control Valve Function
Advance, Hold, Retract
Power Source
Corded
Description
Electric Pump, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115V, Duty Cycle Intermittent, Phase Single, Operating Pressure - Maximum 5,000 psi, Displacement @ 5000 psi 25 cu in/min, Displacement @ 10,000 PSI Not Applicable, Control Valve Type 3-Position, 3-Way, Reservoir Capacity 231 cu in, Reservoir Material Fiberglass Reinforced Polyamide, Overall Height 14.7 in, Cylinder Compatibility Single Acting, Control Pendant Size 10 ft, Control Pendant Voltage 24VDC
