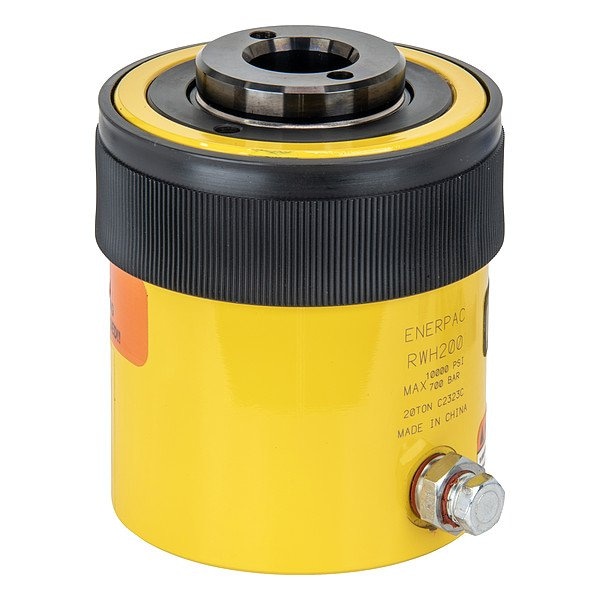

Hollow Plunger Cylinder
Mfr # RWH200
Zoro # G515489014
product price: $1,560.99
/ea
Free Shipping & Returns
Key Features
Extended Height
5.39 in
Stroke Length
1/2 in
Outside Dia.
3.87 in
Collar Thread Size
3/8"-18
Plunger Thread Size
1.06"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RWH200
Zoro #
G515489014
UPC #
0662005310401
Country of Origin
China
Dimensions
Extended Height
5.39 in
Stroke Length
1/2 in
Outside Dia.
3.87 in
Collar Thread Size
3/8"-18
Plunger Thread Size
1.06"
Plunger Dia.
2.12 in
Center Hole Dia.
1.06 in
Retracted Height
4.88 in
Base Bolt Circle Dia.
3.25 in
Base Mounting Thread Size
3/8"-16
Nominal Stroke Length
1/2 in
Details
Item
Hollow Plunger Cylinder
Max. Pressure
5,000 psi
Single Acting/Double Acting
Single Acting
Body Material
Steel
Cylinder Type
Hollow Plunger
Max. Push Capacity
23,500 lb
Oil Capacity Push
2.37 cu in
Effective Push Area
4.74 sq in
Nominal Capacity
23,500 lb
Description
Hollow Plunger Cylinder, Single Acting, Hollow Plunger, Steel, Nominal Capacity 23,500 lb, Max. Push Capacity 23,500 lb, Stroke Length 1/2 in, Nominal Stroke Length 1/2 in, Effective Push Area 4.74 sq in, Max. Pressure 5,000 psi, Oil Capacity Push 2.37 cu in, Retracted Height 4.88 in, Extended Height 5.39 in, Outside Dia. 3.87 in, Plunger Dia. 2.12 in, Plunger Thread Size 1.06 In., Collar Thread Size 3/8 In.-18, Base Bolt Circle Dia. 3.25 in, Base Mounting Thread Size 3/8 In.-16
