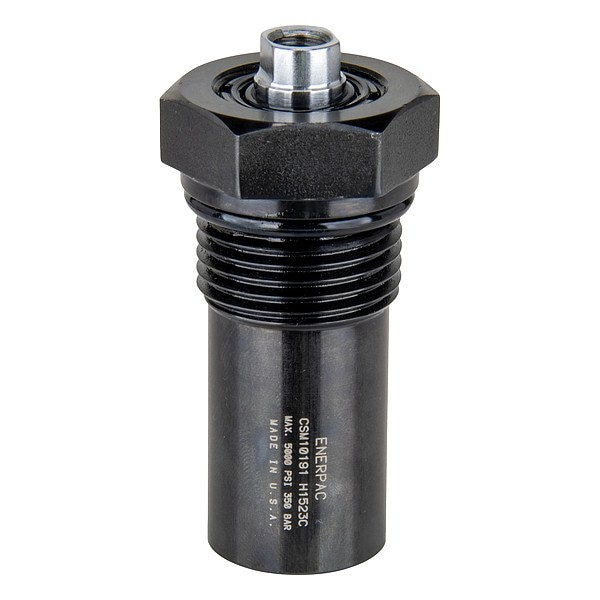

Hydraulic cylinder
Mfr # CSM10191
Zoro # G215488959
product price:Â $241.99
/ea
Free Shipping & Returns
Key Features
Outside Dia.
0.94 in
Retracted Height
2.75 in
Plunger Thread Size
0.313"-24 UN
Extended Height
3.5 in
Cylinder Type
Manifold Hydraulic Cylinder
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CSM10191
- Zoro #
- G215488959
- UPC #
- 0662005125395
- Country of Origin
- United States
Dimensions
- Outside Dia.
- 0.94 in
- Retracted Height
- 2.75 in
- Plunger Thread Size
- 0.313"-24 UN
- Extended Height
- 3.5 in
- Stroke Length
- 3/4 in
- Min. Hole Depth
- 0.31 in
Details
- Item
- Hydraulic Cylinder
- Cylinder Type
- Manifold Hydraulic Cylinder
- Body Material
- Steel
- Single Acting/Double Acting
- Single Acting
- Pressure Range
- 5,000 psi max
- Mounting Style
- Manifold Mount
- Oil Capacity Pull
- 0.38 cu in
- Effective Pull Area
- 0.50 sq in
- Seal Material
- Polyurethane/Buna N
- Body Thread
- 1.062"-12 UN
- Push Capacity @ 5000 psi
- 2,590 lbf
Description
Hydraulic Cylinder, Manifold Hydraulic Cylinder, Manifold Mount, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 2,590 lbf, Stroke Length 3/4 in, Effective Pull Area 0.50 sq in, Oil Capacity Pull 0.38 cu in, Pressure Range 5,000 psi max, Extended Height 3.5 in, Retracted Height 2.75 in, Body Thread 1.062 In.-12 UN, Plunger Thread Size 0.313 In.-24 UN, Outside Dia. 0.94 in, Min. Hole Depth 0.31 in, Seal Material Polyurethane/Buna N
