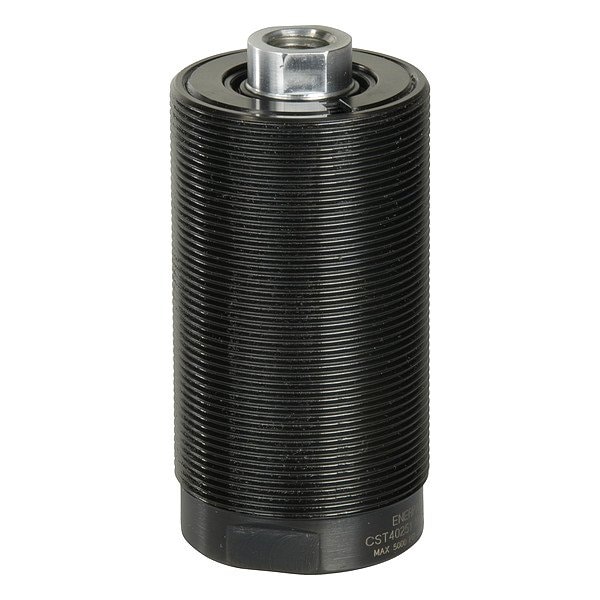

Hydraulic cylinder
Mfr # CST40501
Zoro # G115488981
product price: $659.99
/ea
Free Shipping & Returns
Key Features
Body Material
Steel
Stroke Length
2 1/32 in
Retracted Height
5.41 in
Extended Height
7.44 in
Outside Dia.
1.79 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CST40501
Zoro #
G115488981
UPC #
0662005133475
Country of Origin
United States
Dimensions
Stroke Length
2 1/32 in
Retracted Height
5.41 in
Extended Height
7.44 in
Outside Dia.
1.79 in
Plunger Thread Size
1/2"-13 UNC
Min. Hole Depth
0.47 in
Details
Body Material
Steel
Item
Hydraulic Cylinder
Single Acting/Double Acting
Single Acting
Cylinder Type
Threaded Body
Seal Material
Polyurethane/Buna N
Body Thread
1 7/8"-16 UN
Pressure Range
5,000 psi max
Oil Capacity Pull
3.46 cu in
Mounting Style
Threaded Body
Effective Pull Area
1.76 sq in
Description
Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Stroke Length 2 1/32 in, Effective Pull Area 1.76 sq in, Oil Capacity Pull 3.46 cu in, Pressure Range 5,000 psi max, Extended Height 7.44 in, Retracted Height 5.41 in, Body Thread 1 7/8 In.-16 UN, Plunger Thread Size 1/2 In.-13 UNC, Outside Dia. 1.79 in, Min. Hole Depth 0.47 in, Seal Material Polyurethane/Buna N
