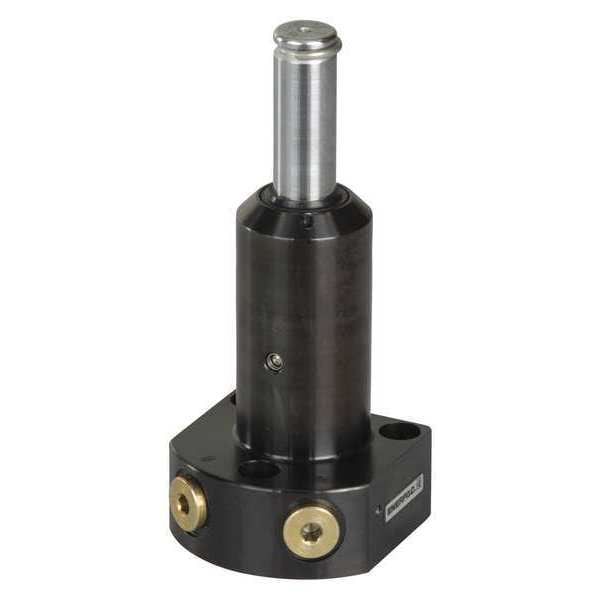

Hydraulic Cylinder, Lower Flange, 1250 lb.

  • Zoro #: G0091845
  • Mfr #: SLLD52
$668.85
  • Promotion Restriction: Not eligible for promotion
  • Bolt Size: 1/4"-28
  • Min. Hole Depth: 0.65 in
See full product details
This item ships free.

Enerpac #SLLD52 Specifications

  • Zoro #: G0091845
  • Mfr #: SLLD52
Promotion Restriction: Not eligible for promotion Bolt Size: 1/4"-28
Min. Hole Depth: 0.65 in Outside Dia.: 1.37 in
Body Style: Lower Flange Includes: Mounting Bolts and Arm C-Clip
Swing Angle: 90 Degrees Turns: Left
Mounting Thread: 1/4"-28 Mounting Hole Dia.: 1.38 in
Extended Height: 5.33 in Effective Area Clamped: 0.28 sq in
Port Size: #4 SAE Clamping Force: 1,259 lb
Pressure Range: 500 to 5000 psi Item: Swing Clamp Hydraulic Cylinder
Max. Oil Flow: 25 cu in/min Stroke: 0.89"
Material of Construction: Steel Oil Capacity Clamped: 0.25 cu in
Type: Swing Number of Bolts: 4
Function: Double Acting Max. Pressure: 5,000 psi
Series: SLL Single Acting/Double Acting: Double Acting
Cylinder Type: Swing Mounting Style: Lower Flange
Clamping Stroke: 0.39 in Total Stroke: 0.89 in
Body Material: Steel Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 1,259 lb, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.25 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi, Extended Height 5.33 in, Outside Dia. 1.37 in, Mounting Hole Dia. 1.38 in
