  5. Hydraulic Cylinder Pressure Gauge, 1/4 in NPTF, Bottom Location, Stainless Steel Case Material

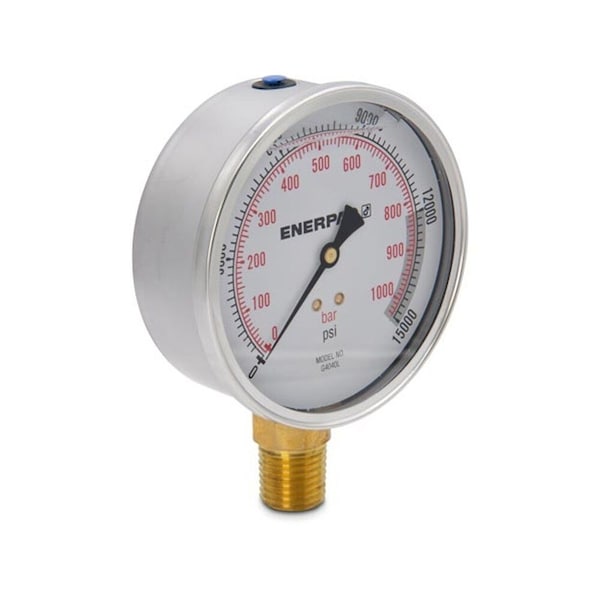

Enerpac Hydraulic Cylinder Pressure Gauge, 1/4 in NPTF, Bottom Location, Stainless Steel Case Material G4040L - main

Hydraulic Cylinder Pressure Gauge, 1/4 in NPTF, Bottom Location, Stainless Steel Case Material

  • Mfr # G4040L

  • Zoro # G214653006

product price:  $525.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPTF
Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
G4040L
Zoro #
G214653006
UPC #
0662005223886
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Case Diameter
4 in
Nominal Dial Size
4 in
Case Depth
1.93 in
Nominal Dial Diameter
4 in

Details

Item
Hydraulic Cylinder Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPTF
Gauge Case Material
Stainless Steel
Series
G
Lens Material
Polycarbonate
Primary Scale Units
psi
Liquid-Filled Case
Yes
Panel-Mountable
No
Blowout Safety Back
Yes
Socket Material
Brass
Includes
Pressure Equalizing Membrane, Safety Blow-Out Disk
Case Material
Stainless Steel
Process Connection Gender
Male
Pressure Range Type
Pressure
Sensor Material
Copper Alloy
Compatible Gauge Adapter
GA3
Scale Type
Dual
Pressure Gauge Type
Hydraulic Press Pressure Gauge
Primary Scale Pressure Measurement - Maximum
15,000 psi
Field Fillable
No
Gauge Case Liquid
Glycerin
Primary Scale Pressure Measurement - Minimum
100 psi
Process Media Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
4
Secondary Scale Units
bar
Process Media Temperature - Minimum
20 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,000 bar
Secondary Scale Pressure Measurement - Minimum
7 bar
IP Rating
IP66
Case Liquid
Glycerin
Compatible Gauge Adapter Series
GA3
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
140 Degrees F

Description

Hydraulic Pressure Gauges
