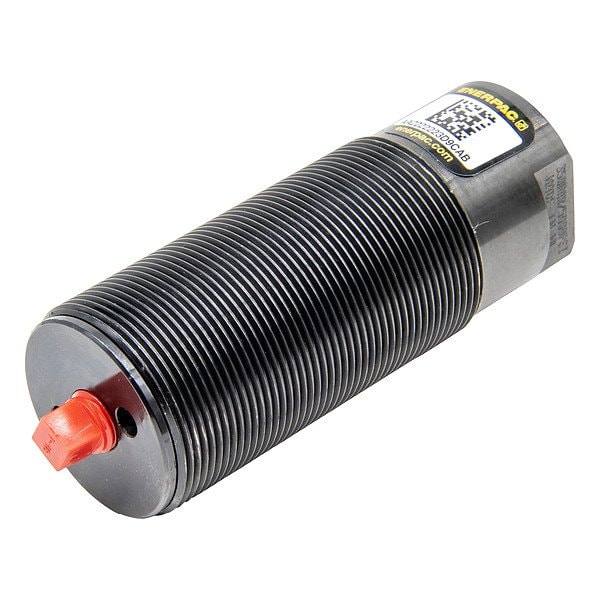

Hydraulic cylinder
Mfr # WMT40
Zoro # G415488988
product price: $727.99
/ea
Free Shipping & Returns
Key Features
Outside Dia.
1.3 in
Body Material
Steel
Single Acting/Double Acting
Double Acting
Retracted Height
3.78 in
Plunger Thread Size
1/4"-28
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WMT40
Zoro #
G415488988
UPC #
0662005304813
Country of Origin
Netherlands
Dimensions
Outside Dia.
1.3 in
Retracted Height
3.78 in
Plunger Thread Size
1/4"-28
Stroke Length
31/32 in
Min. Hole Depth
0.39 in
Details
Body Material
Steel
Single Acting/Double Acting
Double Acting
Cylinder Type
Threaded Body
Item
Hydraulic Cylinder
Seal Material
Polyurethane/Buna N
Body Thread
1.375"-18 UNEF
Oil Capacity Pull
0.79 cu in
Oil Capacity Push
0.54 cu in
Effective Pull Area
0.79 sq in
Mounting Style
Threaded Body
Pressure Range
150 to 5,000 psi
Effective Push Area
0.54 sq in
Description
Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Stroke Length 31/32 in, Effective Push Area 0.54 sq in, Effective Pull Area 0.79 sq in, Oil Capacity Push 0.54 cu in, Oil Capacity Pull 0.79 cu in, Pressure Range 150 to 5,000 psi, Retracted Height 3.78 in, Body Thread 1.375 In.-18 UNEF, Plunger Thread Size 1/4 In.-28, Outside Dia. 1.3 in, Min. Hole Depth 0.39 in, Seal Material Polyurethane/Buna N
