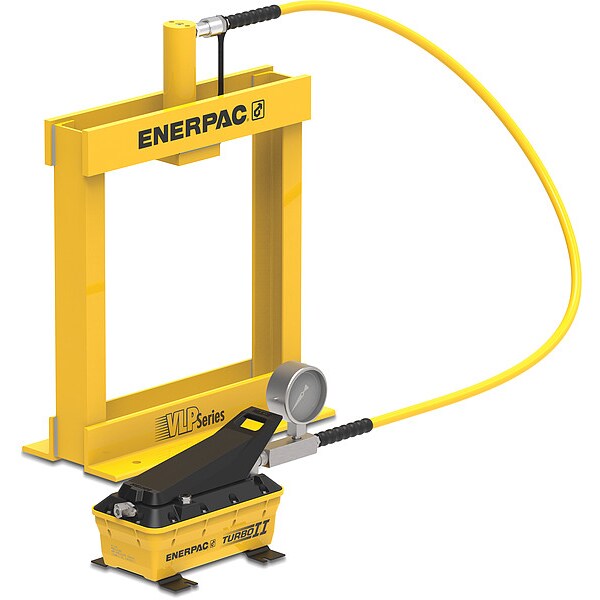

Enerpac Hydraulic Press, 29.61 in H, Air VLP106PAT1U - main

Hydraulic Press, 29.61 in H, Air

  • Mfr # VLP106PAT1U

  • Zoro # G4700820

product price: $3,195.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
10 ton
Frame Type
Bench Frame
Cylinder Stroke
6 1/8 in
Pump Type
Air
Base Length
21 17/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLP106PAT1U
Zoro #
G4700820
UPC #
0662005427987
Country of Origin
Netherlands

Dimensions

Base Length
21 17/64 in
Base Width
21 1/4 in
Overall Height
29 5/8 in
Overall Depth
9 1/2 in
Overall Width
21 1/4 in
Width Between Table Channels
3 5/32 in
Table Length
17 1/8 in
Overall Length
21 17/64 in
Maximum Bed Width
17.13 in
Press Bed Depth
3 1/8 in
Press Bed Width
17 1/8 in
Hydraulic Hose Length
6 ft
Base Depth
9 1/2 in

Details

Frame Capacity
10 ton
Frame Type
Bench Frame
Cylinder Stroke
6 1/8 in
Pump Type
Air
Operating Pressure
10,000 psi
Pump
Mfr. No. PATG1102N
Features
Operational in Vertical or Horizontal Position
Includes
General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump
Application
Pressing Bearings
Reservoir Capacity
127 cu in
Item
Hydraulic Press
Cylinder Type
Single Acting
Adjustable Bed
Fixed
Max. Ram-to-Table Distance
16 47/64 in
Max. Ram Press Speed
0.07 in/sec
Stroke
6 1/8 in
Compatible Mfr. Model Number
PATG1102N, RC106
Max. Ram Advance Speed
0.45 in/sec
Distance Between Uprights
17 1/8 in
Pressure
10,000 psi
For Use With
Single Acting Cylinder
Color
Yellow
Series
VLP
Power Source Type
Air
Maximum Vertical Daylight
16.73 in
Maximum Ram Advance Speed
0.45 in/sec
Ram-to-Table Distance - Maximum
16 3/4 in
Pump Model Number
PATG1102N
Ram-to-Table Distance - Minimum
4 3/8 in
Operation
Air
Maximum Ram Press Speed
0.07 in/sec
Capacity
10 ton
Cylinder Model Number
RC106

Description

Hydraulic Press, Pump Type Air, Frame Type Bench Frame, Frame Capacity 10 ton, Cylinder Type Single Acting
